Check FTT pass rates, open failed runs, and start device tests from the KODE OS mobile app.
The Functional Testing Tool (FTT) runs automated checks on building equipment for commissioning and ongoing validation. On mobile, the FTT app shows pass rates, failed sequences, and building scores from Functional Testing Tool on the web.Use mobile FTT to review results in the field. Project setup, workflow authoring, and deployment stay on the web (FTT deployment).
Open FTT from the building app launcher (or from the portfolio sheet when published).

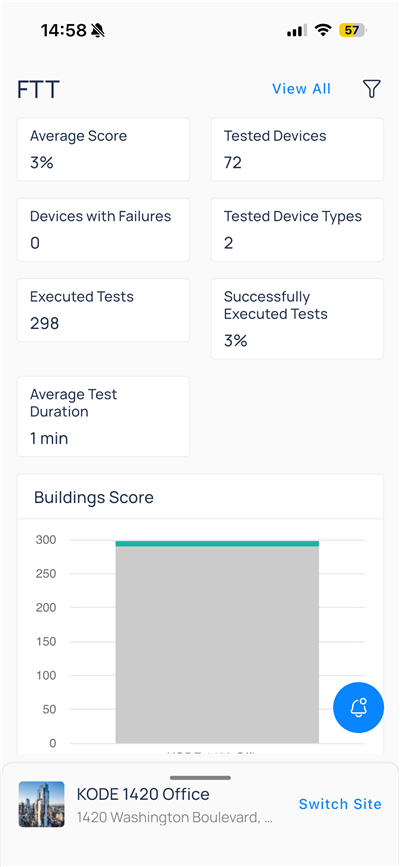

Summary KPI tiles
KPI
Meaning
Average Score
Aggregate pass rate
Tested Devices
Devices included in recent runs
Devices with Failures
Devices that still have failing sequences
Executed Tests
Total test executions in range
Successfully Executed Tests
Pass share
Average Test Duration
Mean runtime per sequence
Select View All for the full test list. Use the filter icon to change buildings or date scope.Scroll the home screen for sequence, trend, and breakdown charts.
Chart reference on FTT home
Chart
Shows
Sequence Success Scores
Pass versus fail counts per sequence step
Buildings Score
Comparative bar chart across sites in portfolio context
Workflows
Per-workflow archived, failed, and completed counts with score trend
Tap View All at the top of the home screen to open test history and projects.
History
Projects

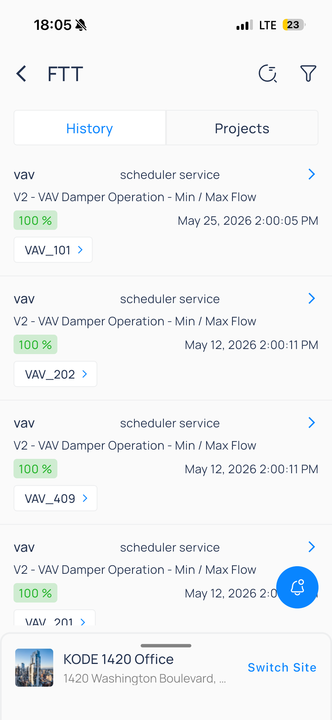

The History tab lists completed runs with workflow name, score badge, timestamp, and device link. Tap a row to open that test.
Completed test runs
Details
Test

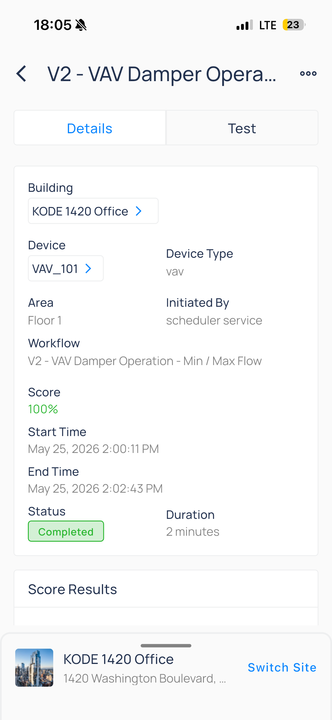

The Details tab shows building, device, workflow, score, timing, and status.
Scroll for Score Results (pass rate over time) and Sequences Results (passed versus failed counts by run date).

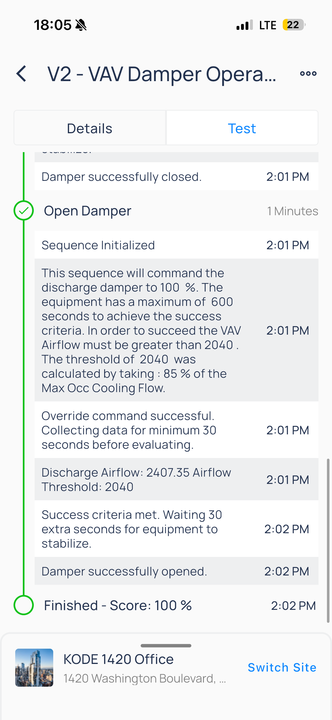

The Test tab shows the step-by-step run timeline. Each step lists timestamps, sequence descriptions, sensor readings, and pass or fail outcomes. The run ends with Finished and the final score.
Finished score

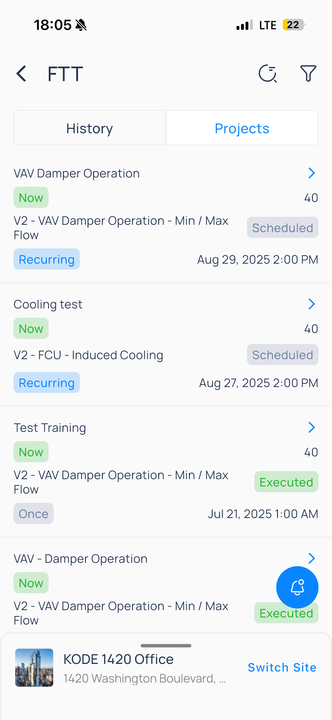

Review scheduled and executed FTT projects. Each card shows the project name, workflow, device count, status (Scheduled or Executed), recurrence (Recurring or Once), and run time.
When your site enables mobile test runs, you can start a test from equipment.
1

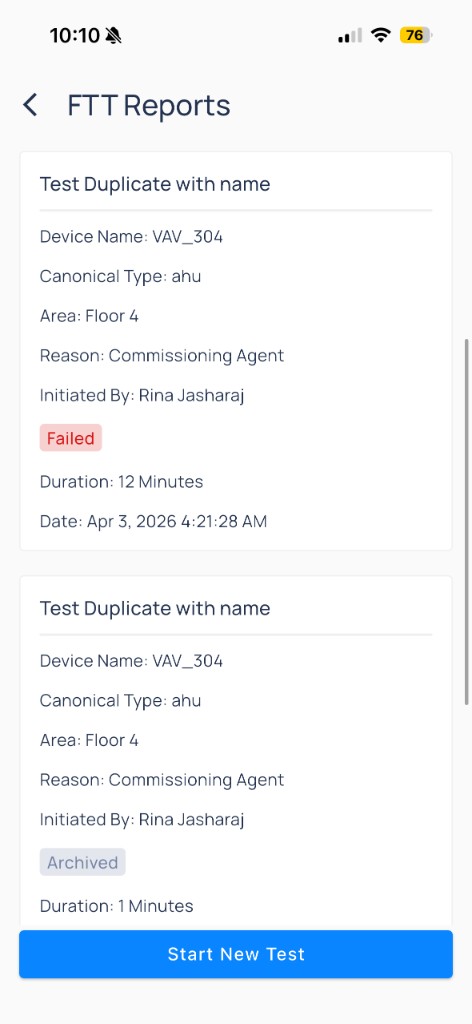

Open FTT Reports
From a device, open the More menu and choose FTT Reports.
2
Review past runs
Each card shows the workflow name, device, area, reason, status badge, duration, and timestamp. Tap a report to open the run timeline and final score.
3
Start New Test
Tap Start New Test. Choose a Workflow and Reason, add an optional Workflow Description, then tap Continue.
Test history with Start New Test

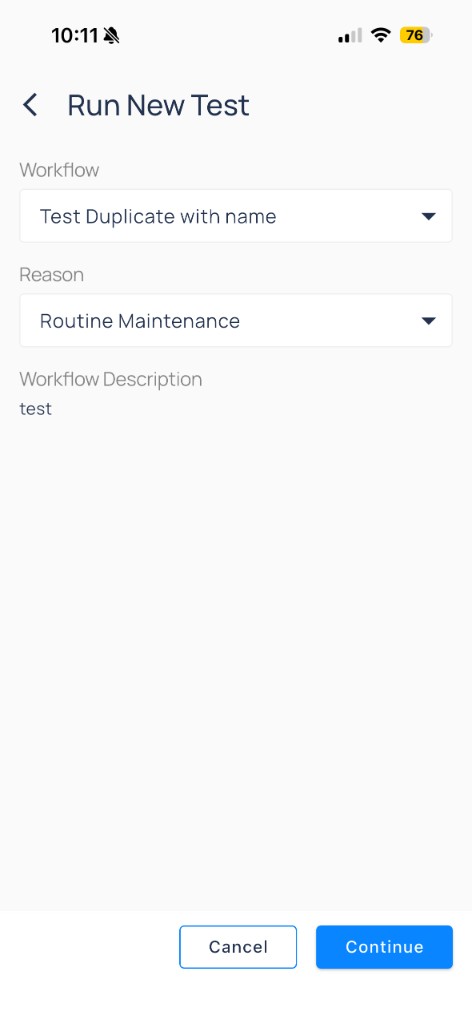

Workflow and reason selected
If Start New Test is missing, your site is monitoring-only on mobile. Use web FTT to run or schedule tests. When no tests exist yet, the list can be empty while Start New Test still appears.
For building-wide KPIs, use the FTT home screen from the app launcher.
