A device is a piece of equipment in the building—for example an air handler (AHU) or variable air volume box (VAV). On mobile you open equipment from Systems, Areas, search, or graphics, then monitor points and jump to related apps. Devices match Devices on the web for day-to-day operations.
Point writes affect live equipment. Confirm the site, device, and priority before you tap Write Point. See Points on mobile for the full override form and bulk writes.

​
Open the device list

From the building app launcher, select Devices. The header shows Devices, search, and filters.

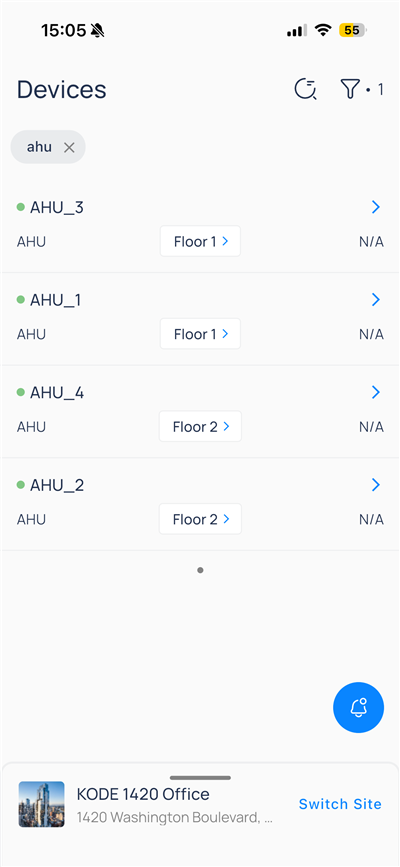

Devices list filtered by ahu with search and filter icons in the header and AHU rows

Devices list with search chip and filter badge

​
Filter the list

When browsing many units, open Device Filters before you select equipment.

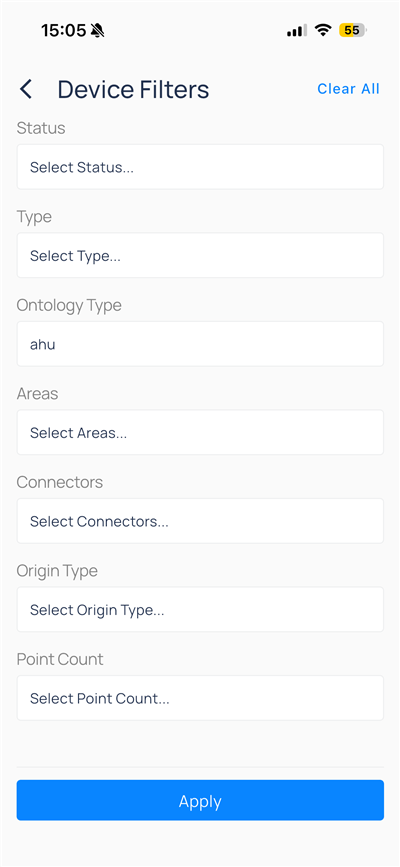

Device Filters screen with Ontology Type ahu and Apply button

Device Filters with Ontology Type set to ahu

Tap Clear All, set criteria, then Apply.

​
Device detail

Select a device to open its detail view (for example, AHU_3). The header shows the device name, bookmark, and More menu. Expand Details for area and building. Sensor rows show live values. A pencil icon marks writable points.

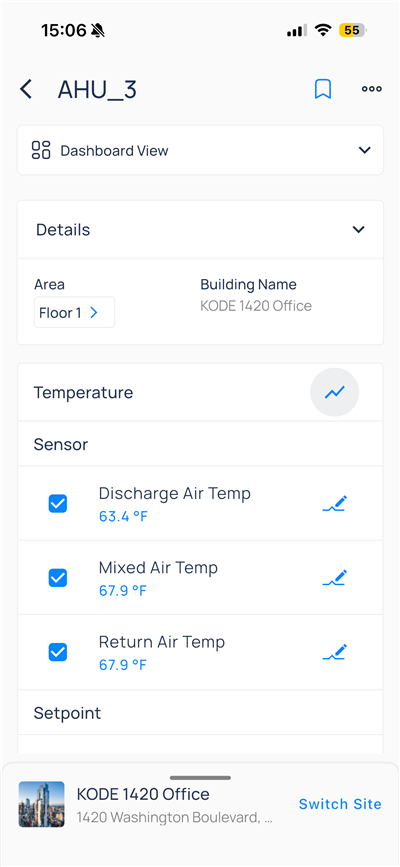

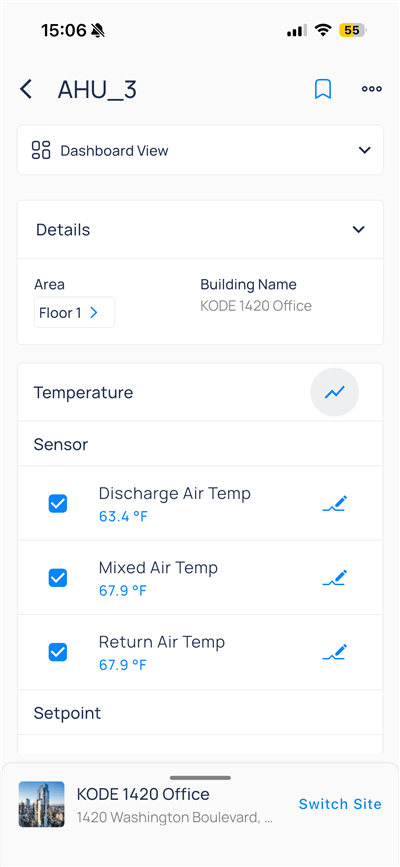

AHU_3 device detail with Details, Temperature sensors, and graph icon

AHU_3 dashboard with Temperature sensors

​
Switch view mode

Tap the current view label (for example, Dashboard View) to change layout:

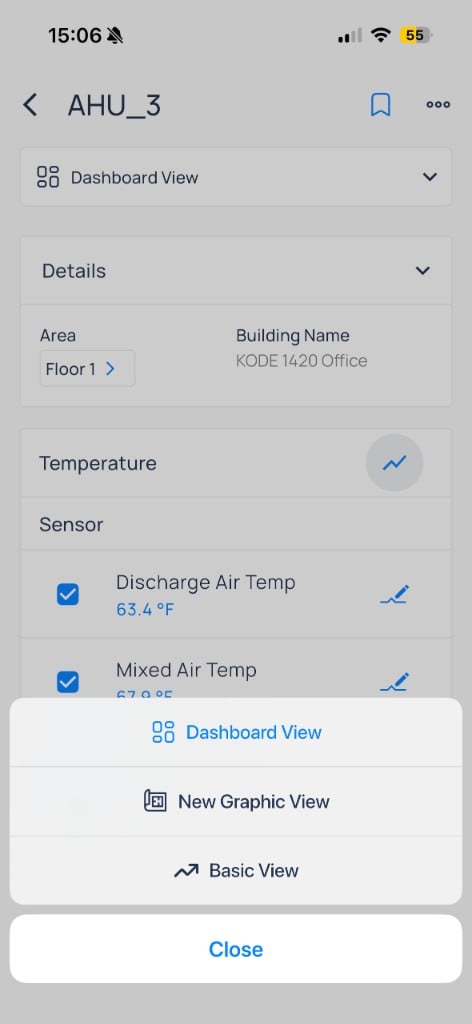

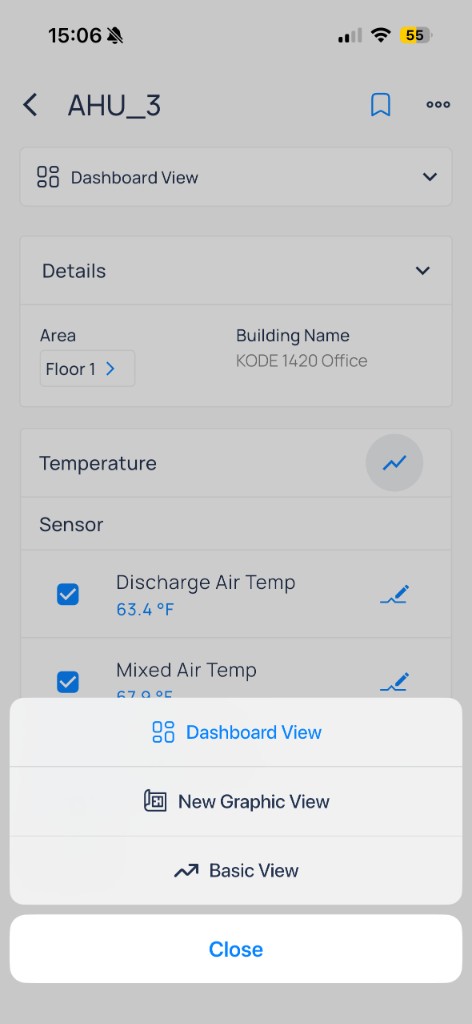

AHU_3 view selector showing Dashboard View, New Graphic View, and Basic View options

Dashboard, New Graphic, and Basic views

​
Trend points on the device

Tap the graph icon on a point group such as Temperature to open the device trend for checked sensors. Switch between chart and table. Change the window from the time dropdown (for example, Last 2 Days). For multi-point trending across many devices, use Trends on mobile.

​
Write a point

Tap the pencil on a writable sensor to open Write Point.

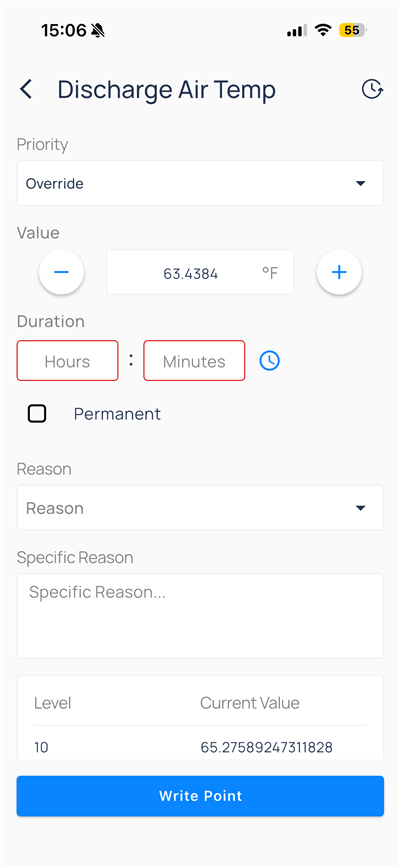

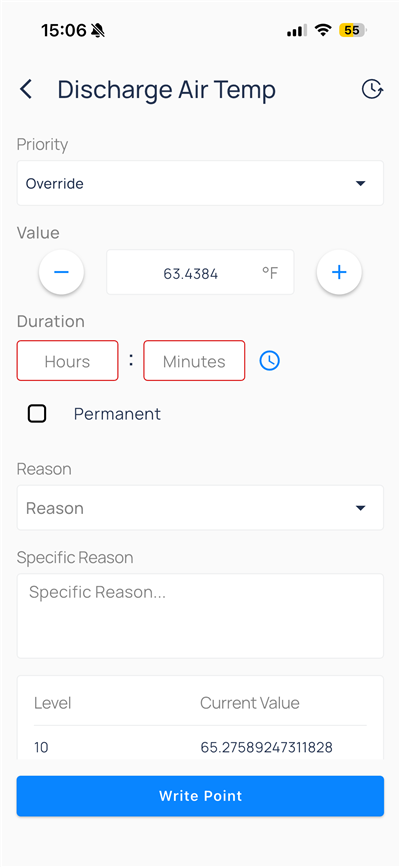

Write Point command window with priority Override, value, duration, reason, and Write Point button

Write Point command for Discharge Air Temp

Set priority, value, duration, and reason, then tap Write Point. For field definitions and bulk writes, see Write a point.
To bookmark a device, add a note, or set Remind Me, see Use bookmarks on mobile.

​
Device menu

Open the More (⋯) menu for cross-module shortcuts.

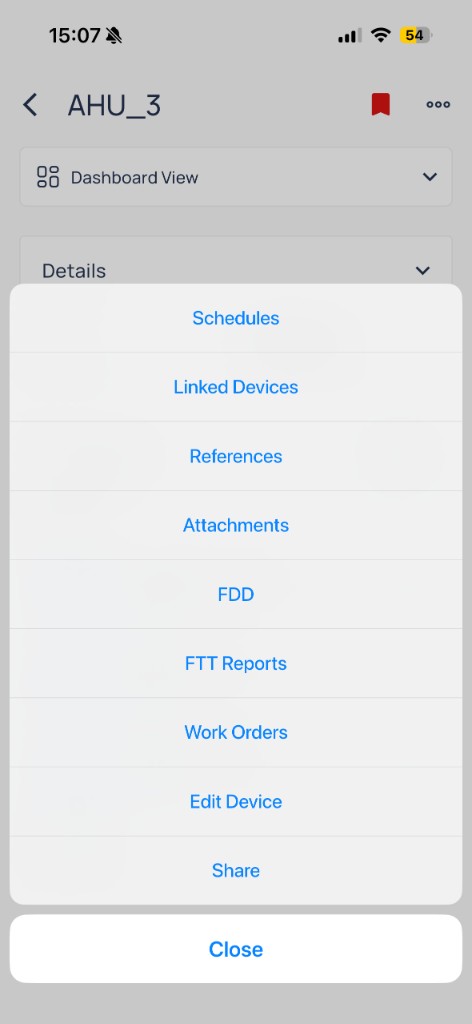

AHU_3 three-dot menu with Schedules, Linked Devices, References, Attachments, FDD, FTT Reports, Work Orders, Edit Device, and Share

Cross-module shortcuts on AHU_3

Schedules lists schedule cards with current value, next change, and point references. Tap View Schedule for the weekly or calendar editor.

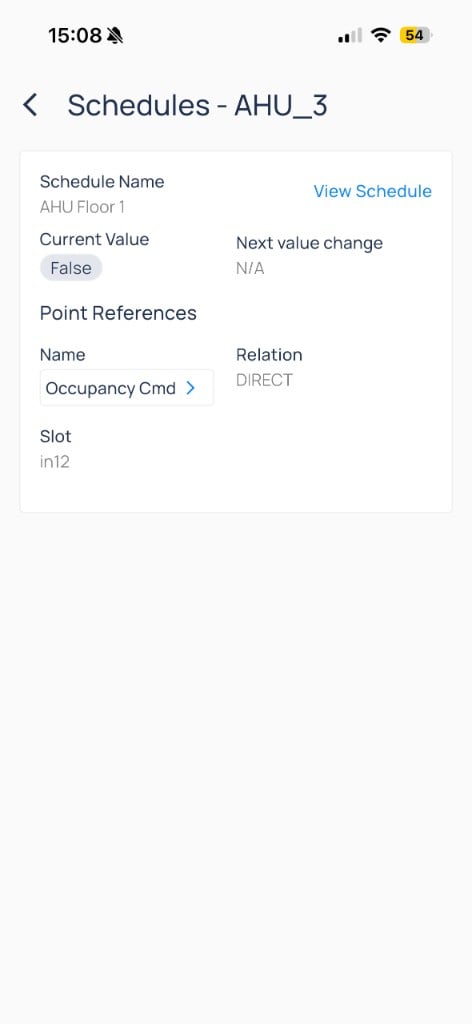

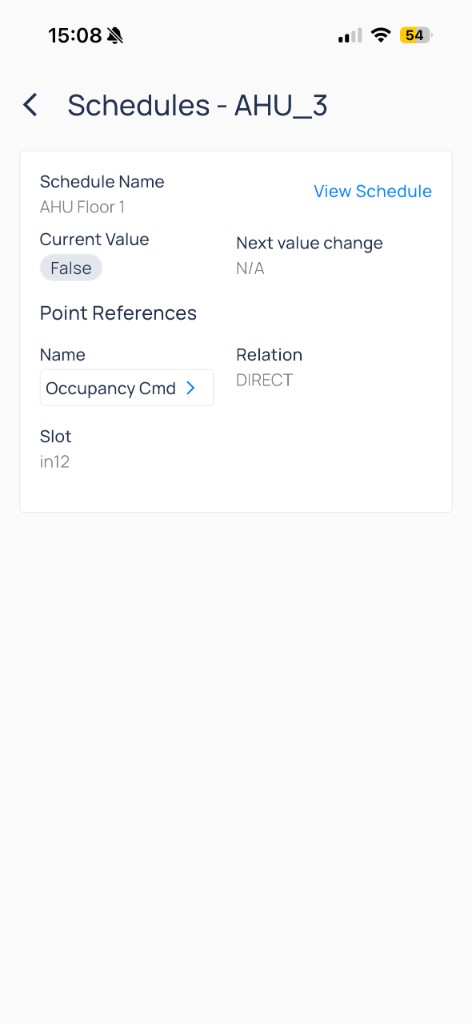

Schedules for AHU_3 showing current value False, next value change N/A, and Occupancy command point reference

AHU Floor 1 schedule card on AHU_3

References shows which sensors and setpoints map to the device template. Use checkboxes to select points, then tap the graph icon to trend them. Pencil icons open writes when your role allows.

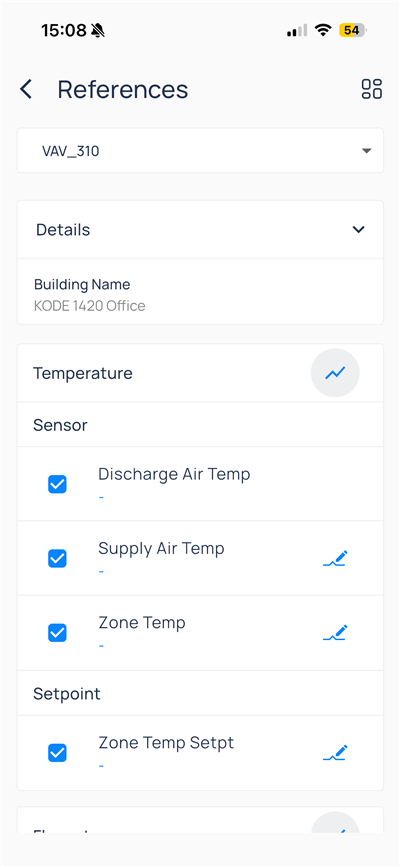

References for VAV_310 with temperature sensors and zone temperature setpoint

Reference points for VAV_310

Attachments lets you capture or upload photos for the asset.

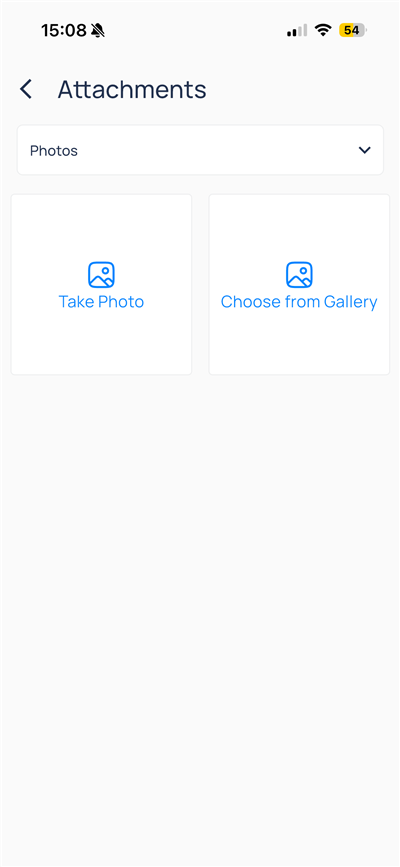

Attachments screen with Take Photo and Choose from Gallery
When enabled, Edit Device updates name, location, type, area, and other metadata. Batch updates, templates, and virtual device creation remain on web Devices.

​
