Portfolio Water dashboard

The portfolio Water dashboard aggregates water consumption and intensity across every building in KODE OS. In the portfolio view, open Dashboards in the left sidebar, then select Water. The page header reads Water with the subtitle Water Use, Efficiency, and Performance Overview.

​

Water report menu

After you select Water, use the secondary menu to switch report types. Monthly Reports is the default view when you open Water.

​

Monthly Reports

​

Controls

The control area matches the Portfolio Energy dashboard layout. Top row

• Usage / Cost — switches all charts between consumption in liters and billed cost
• Starred Buildings — limit results to favorited sites
• Buildings — select or deselect individual buildings
• Date range — pick start and end months, such as 06/22/2025 – 05/22/2026
• Filter — open advanced filters

Second row

• Building Type, Countries, States, Brands, and Regions
• Currency — appears when Cost is selected (for example, US Dollar)

​

Usage lens

Select Usage to view consumption charts in liters (L).

​

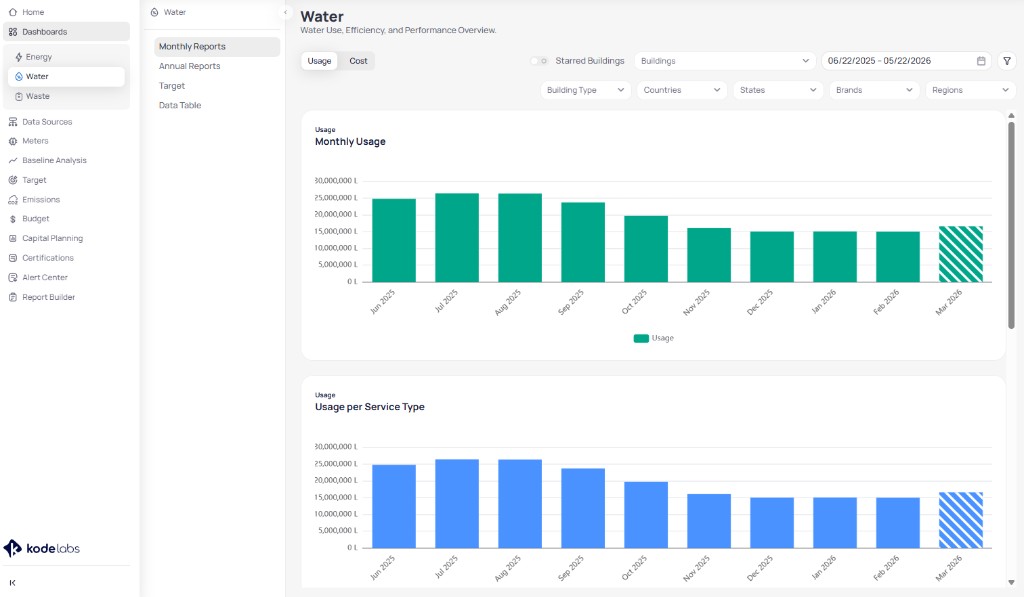

Monthly Usage

The Monthly Usage chart totals portfolio water consumption by calendar month.

• Teal bars show billed or calendarized volume in liters
• Striped bars indicate accrued or estimated months
• Empty months mean no data for that period under your active filters

​

Usage per Service Type

The Usage per Service Type chart shows water volume by category across the same months. The legend typically maps to the Water service type for portfolio water dashboards.

​

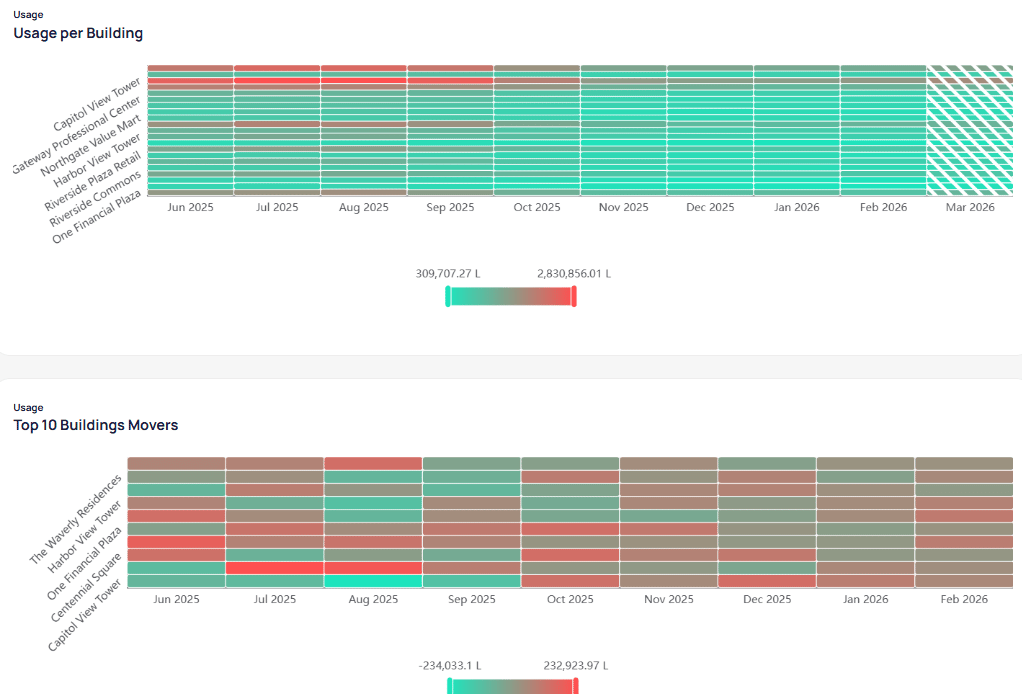

Usage per Building and Top 10 Buildings Movers

Scroll below the service-type chart for building-level views.

• Usage per Building — heatmap of monthly water use by property
• Top 10 Buildings Movers — buildings with the largest usage shifts; legend shows decrease in teal and increase in red

​

Cost lens

Select Cost to view water utility spend.

​

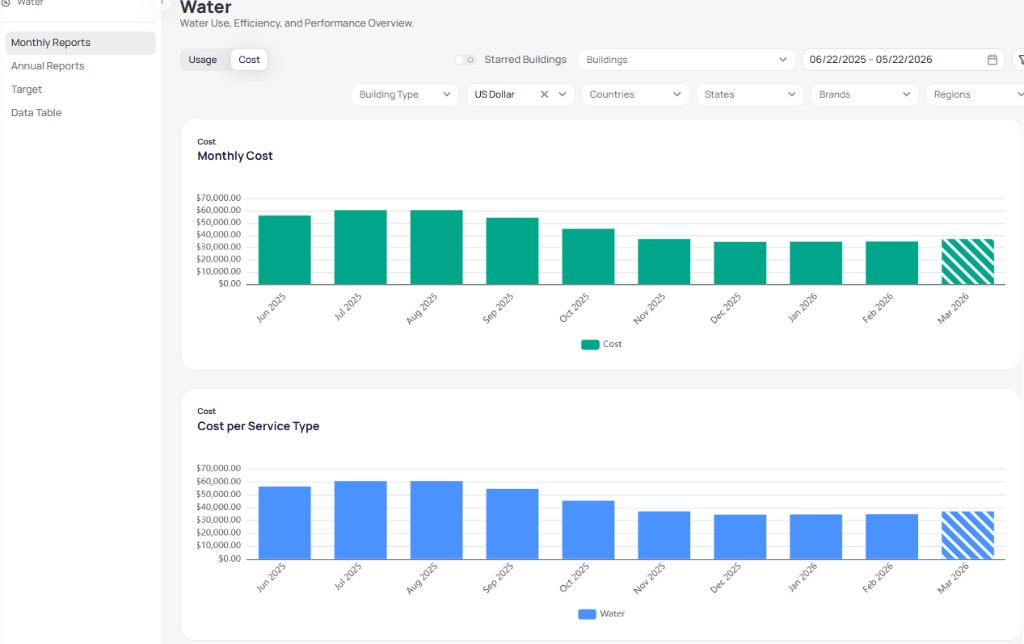

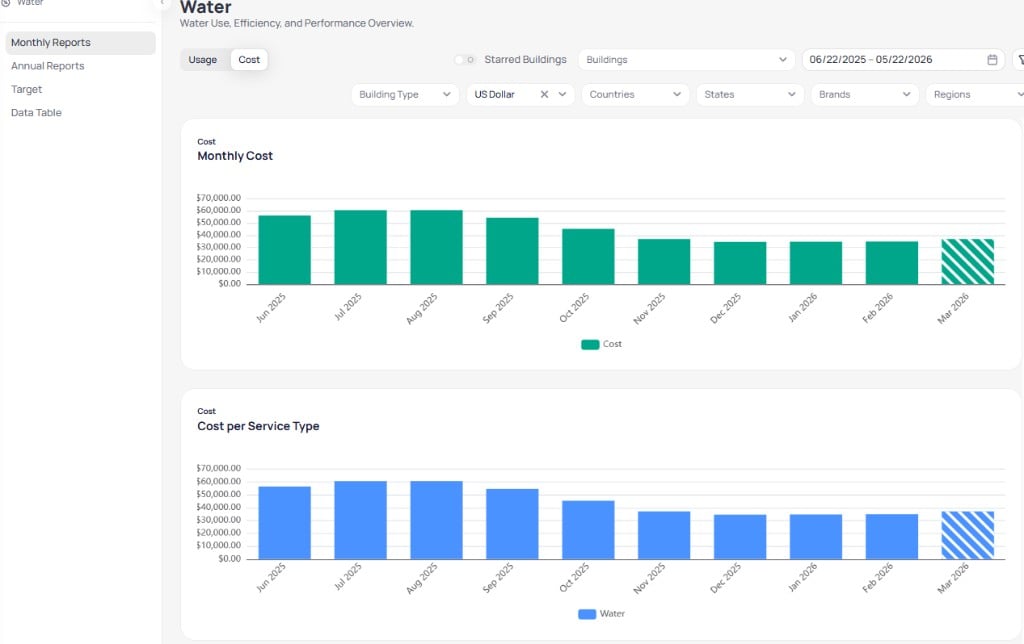

Monthly Cost

The Monthly Cost chart totals portfolio water spend by month. Striped bars indicate accrued or incomplete billing periods.

​

Cost per Service Type

The Cost per Service Type chart groups water cost by service category for each month.

​

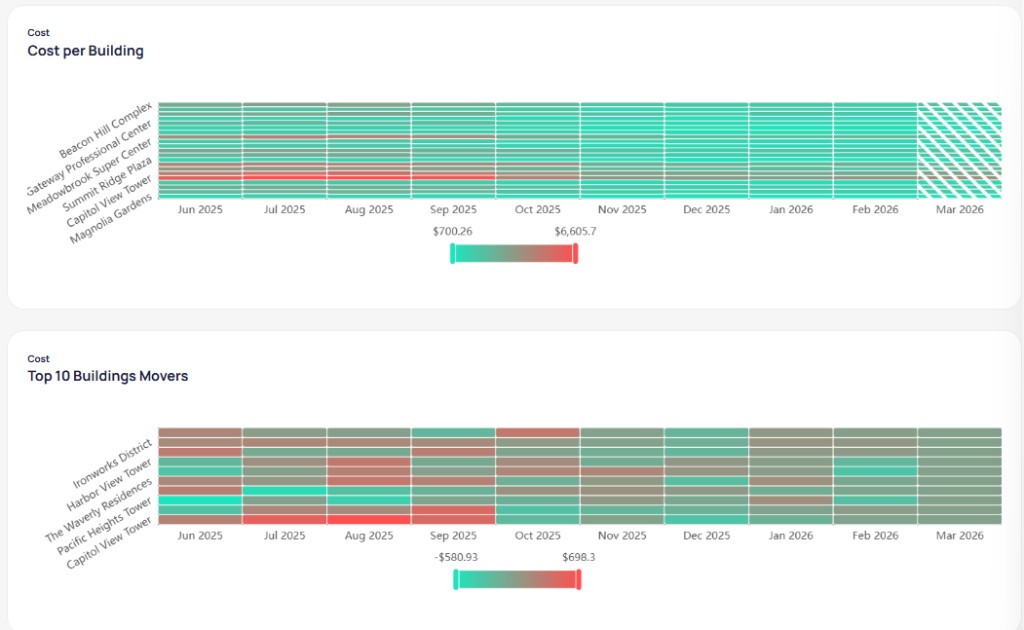

Cost per Building and Top 10 Buildings Movers

​

Annual Reports

Select Annual Reports from the Water secondary menu to compare buildings and years. Use a year range (for example, 2021 to 2025) instead of the month picker on Monthly Reports. The filter rows match Monthly Reports.

​

Usage lens

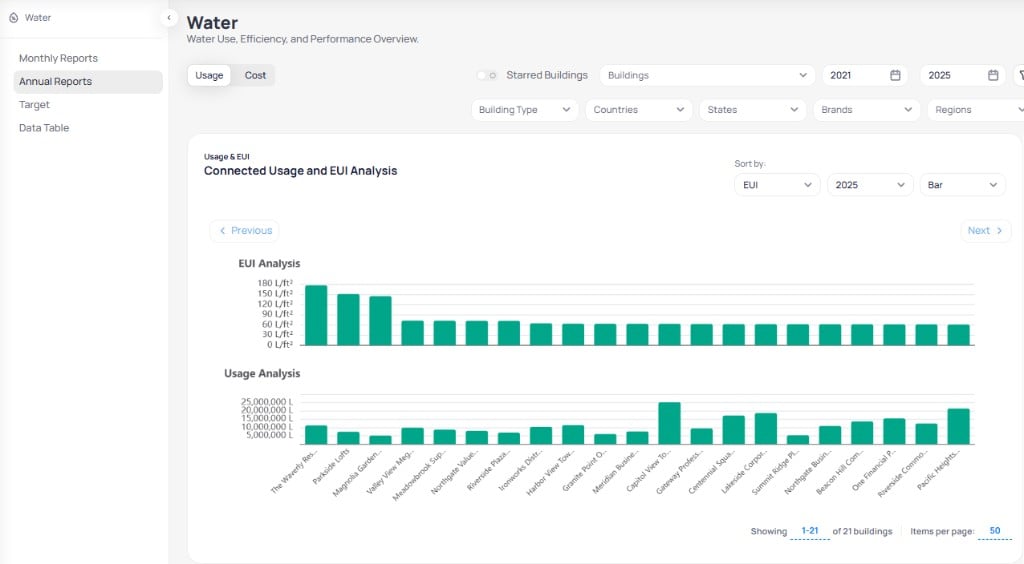

With Usage selected, the main card is Connected Usage and EUI Analysis with paired bar charts. Use the controls above the charts to change sort order, focus year, and chart type. Use Previous and Next when the portfolio spans multiple pages.

• EUI Analysis — water use intensity in L/ft² by building
• Usage Analysis — total water volume in liters for the same buildings

​

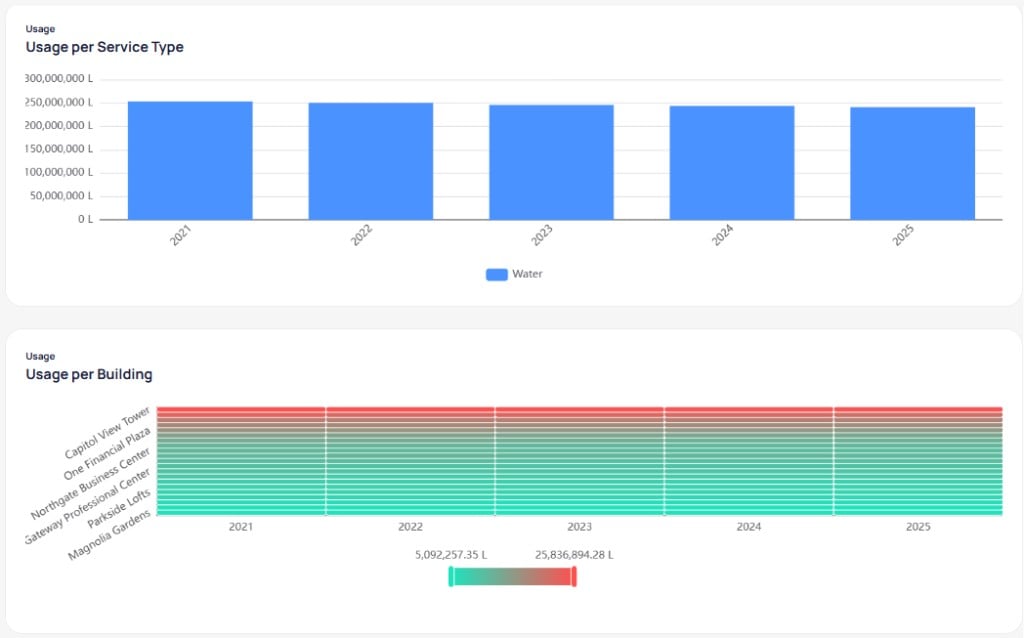

Usage per Service Type and Usage per Building

• Usage per Service Type — annual water volume by year; legend maps to Water
• Usage per Building — heatmap of each property’s annual usage

​

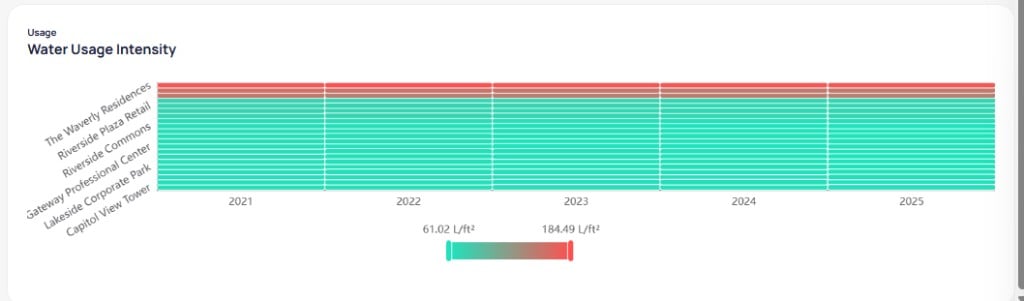

Water Usage Intensity

The Water Usage Intensity heatmap highlights outliers in red and lower-intensity sites in teal.

​

Cost lens

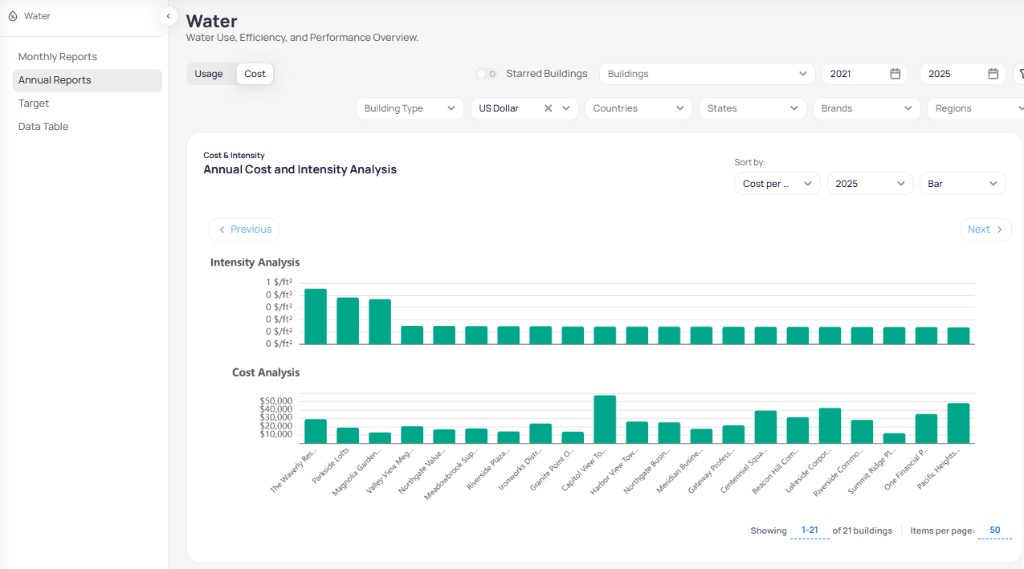

Select Cost for Annual Cost and Intensity Analysis. The top chart shows $/ft². The bottom chart shows total water cost in the selected currency.

​

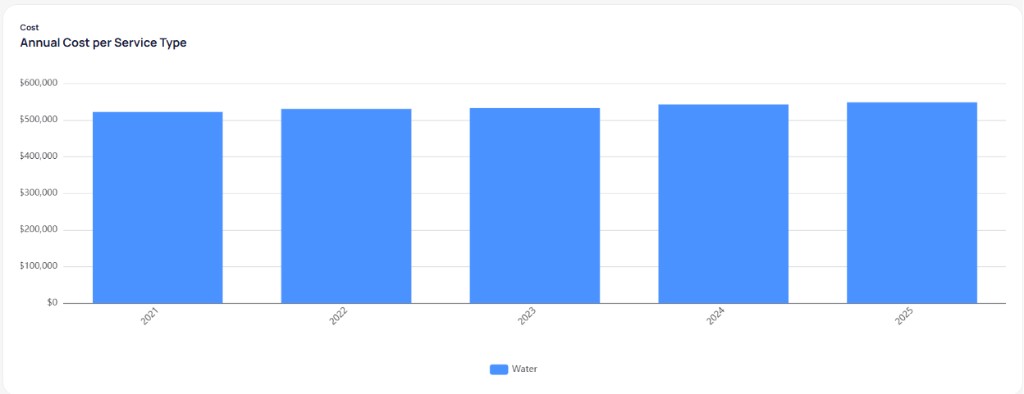

Annual Cost per Service Type

​

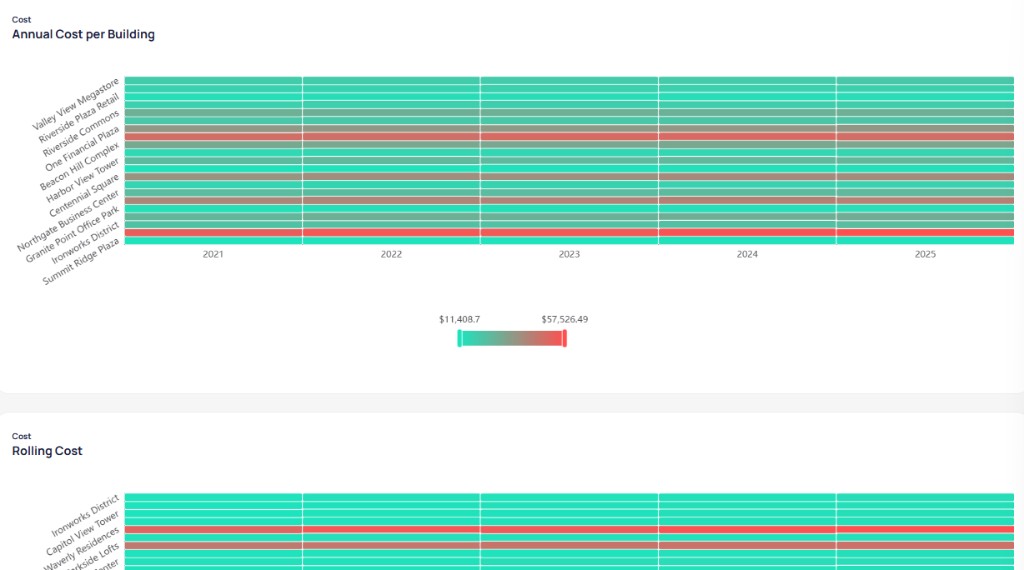

Annual Cost per Building and Rolling Cost

• Annual Cost per Building — annual spend by property and year
• Rolling Cost — cost intensity in $/ft² across the year range

​

Target

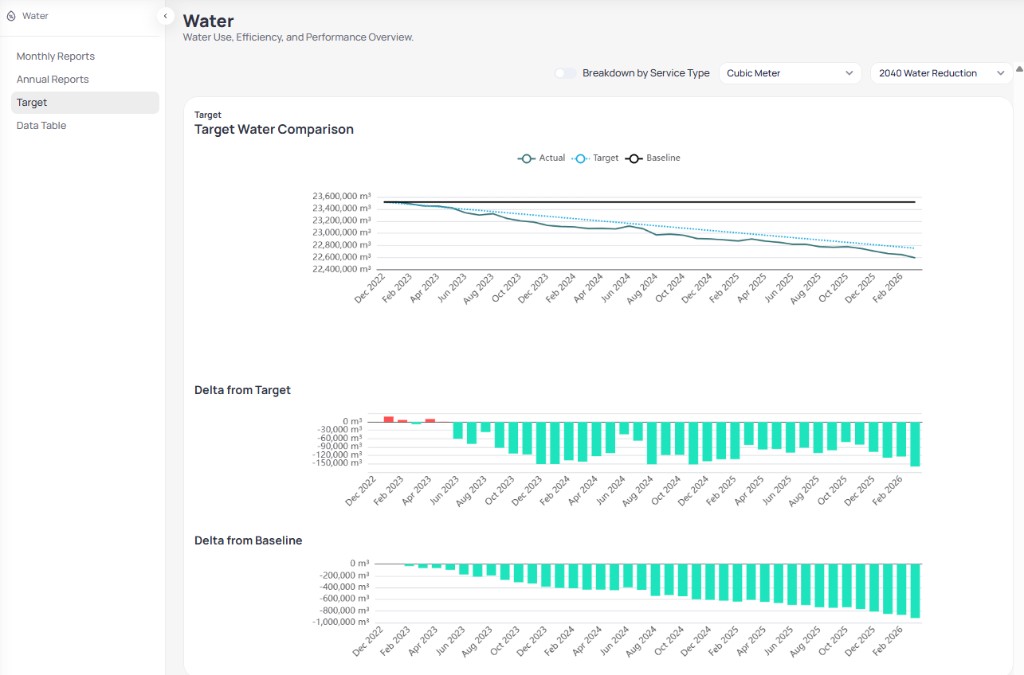

Select Target from the Water secondary menu to compare portfolio actual water use against a reduction target and baseline. Create targets from the portfolio Target sidebar or on Portfolio targets.

​

Controls

• Breakdown by Service Type — split charts by category when enabled
• Unit — choose the volume unit for charts, such as Cubic Meter
• Target — select which portfolio water target to display, such as a named 2040 reduction goal

​

Charts

Teal bars below zero in Delta from Target mean actual use fell below the target. Red bars above zero mean usage exceeded the target for that month.

​

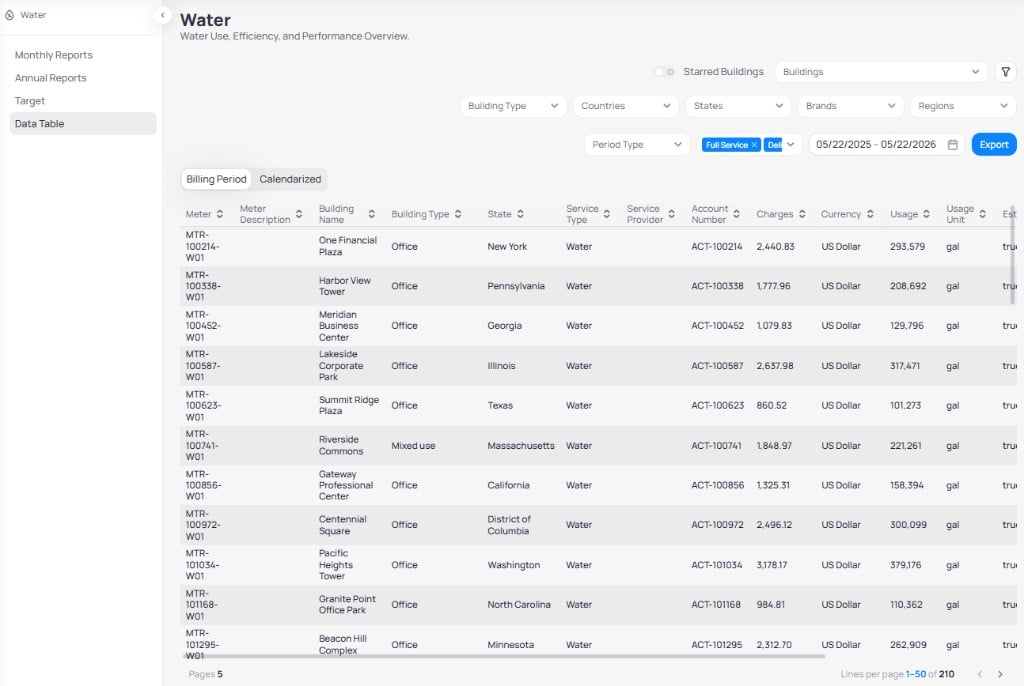

Data Table

Select Data Table from the Water secondary menu to audit line-level water billing and calendarized records.

​

Filters and export

• Starred Buildings and Buildings — limit rows to favorites or selected properties
• Building Type, Countries, States, Brands, and Regions — portfolio scope filters
• Period Type — control how periods are grouped
• Service tags — active chips such as Full Service and Delivery
• Date range — restrict rows, such as 05/22/2025 – 05/22/2026
• Export — download the filtered table

Filter Service Type to Water when you need only water meters. The table may include other service types depending on your filter settings.

​

Billing Period and Calendarized tabs

​

Table columns

Sort any column with the header arrows. Scroll horizontally for all fields, including meter, building, service type, charges, usage, Estimated, and Data Origin. For every column definition, see data table columns.

​

Pagination

The footer shows page count and Lines per page (for example, 1–50 of 210 on Billing Period). Use the arrows to page through large portfolios.

​

Export Water dashboard data

​

Next steps
