Chart styling options

The Style tab controls how a widget looks. It never changes the data the chart shows. Configure data in the Setup tab. For how-to tasks such as default styles, bulk styling, and copy/paste, see Widget customization. Sections available depend on the chart type. General, Colors, and Margins appear on almost every chart. Other sections appear only on types that use them. See Style options by chart type. Each section has an eye icon that shows or hides it. Color options are covered in depth in Color tools. The top of the Style tab also includes reusable-style and layout controls:

Set as Default Style — saves the current widget styling as the page-level default.
Apply Default Style — applies the saved page default to this widget.
Draggable — allows repositioning the widget on the canvas.
Resizable — allows resizing the widget by dragging its corners.

Select multiple widgets by holding Shift and clicking them on the canvas, then change shared style options in bulk.

General

Controls the widget container and layout.

Field

Sets internal spacing around the chart content. Configure Left, Top, Right, and Bottom independently in pixels.

Toggle

Sets the fill color for the widget card. Toggle on to apply a color, or leave off for a transparent background.

Toggle

Adds a header to the widget. Enter the title text, enable Word wrap, and configure font family, size, weight, style, uppercase, underline, and color. Set text alignment to left, center, or right.

Adds an informational tooltip icon to the widget. Enter the tooltip text. Set Icon Color and choose Placement of In Header or Floating. Use tooltips for calculated or non-obvious values.

Toggle

Controls corner rounding on the widget card. Set Corner Radius Type to All for uniform corners, or configure each corner. Enter the radius in pixels.

Toggle

Adds borders to the widget card. Select All Borders or configure individual sides. Set border Weight in pixels and choose a color.

Toggle

Controls what the widget shows when no data is returned. Set a custom Message. Toggle Chart Icon to show or hide the chart type icon. Configure Background Color, Icon Color, and Text Color.

Field

Sets the widget footprint on the dashboard grid. Use with Draggable and Resizable to control whether viewers can move or resize it.

X-Axis and Y-Axis

Both axes share the same options. Combo and Line charts add a Secondary Y-Axis with the same controls.

Toggle

Shows or hides the whole axis.

Field

Renames the axis label (for example, “Floor” instead of a raw field name). Set a Margin between the title and the axis. Configure font family, size, weight, style, and color.

Toggle

Formats axis tick labels.

Font — family, size, weight, style, and color.
Margin — spacing between labels and the chart area. On the Y-Axis, this also sets width for label text.
Overflow — set to truncate to clip long labels, or leave unset for full text (Y-Axis only).
Interval — overrides automatic label spacing. Set to 0 to show every label.
Rotate — tilts labels so long names do not overlap.
Prefix — text before each axis value (for example, a currency symbol).
Dynamic unit — appends a measurement suffix from another data field.
Suffix — text after each axis value.

Field

Locks the axis to fixed bounds instead of auto-scaling. Has no effect if Y-Axis Limits are set in the Setup tab. See Chart setup parameters.

Field

Cleans up displayed numbers with decimals, percentage, thousands separator, and unit options.

Toggle

Shows or hides grid lines behind the chart. Set Line width in pixels and choose a grid line Color.

Toggle

Allows more than one X-axis on supported charts.

Field

Sets bar thickness on horizontal bar charts.

Dynamic units

Resolve prefix and suffix values from data at runtime instead of fixed text. Dynamic units are available wherever static prefix or suffix formatting exists, including axis values, data labels, and chart tooltips. For each prefix or suffix field, choose:

Option	Behavior
Static value	Fixed text you enter (for example, degrees F or kW)
Dynamic value	Select a Unit Name from the dropdown to resolve the unit from a data column at runtime

Select New Dynamic Unit to create a rule that maps a metric or column to a unit suffix. Existing rules list the metric name and unit type. Use the three-dot menu on any rule to edit or delete it. Conditions can use an aggregate function. For example, add a temperature unit suffix to readings from temperature points.

Dynamic units help when you deploy the same dashboard across buildings that use different measurement units. The widget adapts at runtime without manual restyling per site.

Widget Dynamic units format chart labels at display time. The platform unit conversion foundation normalizes values in metrics and bounds logic. It does not change raw stored readings or trend display units yet.

Bar configuration

Available on Bar and Combo charts (including horizontal and stacked variants). Adjusts bar thickness and spacing between bars. Sets how multiple series are arranged: Grouped (side by side) or Stacked (on top of one another).

Data labels

Value labels printed directly on chart elements. On Combo charts, bar and line labels are configured separately.

Toggle

Shows or hides the labels.

Field

What each label displays: Value, Name, Name + Value, Percentage, and related options.

Field

Places the label Inside or Outside the chart element.

Field

Sets label angle in degrees and how many labels to skip.

Field

Sets font family, size, weight (bold), and style (italic) for data label text.

Field

Adds text before each data label value.

Field

Appends a measurement suffix based on another data field. Select a unit from the dropdown.

Field

Adds text after each data label value.

Toggle

Controls numeric display. Set Units to a format type, configure Decimals, and enable Thousands separators for large values.

Toggle

On Pie charts, shows the leader line connecting a slice to its outside label.

Legends

Identifies series in multi-series charts.

Toggle

Shows or hides the legend.

Field

Moves the legend to the top, bottom, left, or right using position icons. Set X and Y offset values in pixels for fine placement.

Field

When there are too many series to fit, the legend scrolls rather than wrapping.

Field

Sets font family, size, weight, style, and color for legend entries.

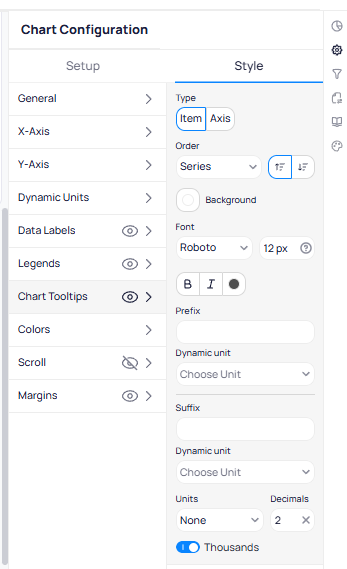

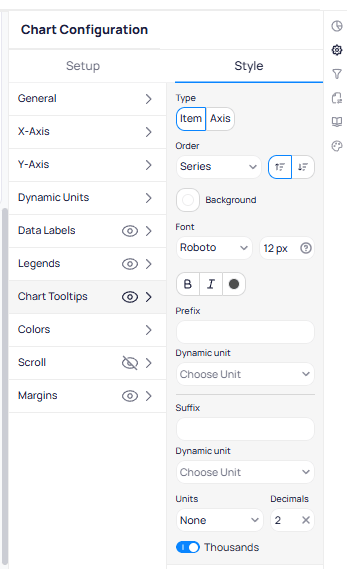

Chart tooltips

The pane that appears when a viewer hovers or clicks a data point. Use tooltips for exact values, timestamps, or device names without cluttering the chart.

Shows or hides the tooltip.

Field

Choose Hover or Click. On cross-filter charts, Click is used for filtering, so Hover keeps both behaviors available.

Field

Choose Item (hovered point only) or Axis (all series at that axis position).

Field

Sets how tooltip entries are sorted. Choose Series to match the legend, or sort by value ascending or descending.

Field

Sets the tooltip background color.

Field

Sets font family, size, weight, style, and color for tooltip text.

Field

Adds text before or after tooltip values.

Field

Appends a measurement suffix based on another data field.

Field

Controls numeric formatting in tooltips. Set Units, configure Decimals, and toggle Thousands separators.

Colors

Sets the color of data series in the Style tab. Managed palettes live in Settings. See Color tools for full detail.

Mode	Effect
Color Scheme	Apply a named palette across the series.
Single Color	One color for the whole chart.
Gradient	Shade values from a low color through to a high color (optionally with a midpoint).
Value Ranges	Assign colors to value bands (for example, green below 70, red above).
Per-Series	Override the color of an individual series.
Conditional	Color cells or points by a rule.

Number and Gauge widgets can also color the value by whether it is under, equal to, or over its target.

Line styles and markers

For Line and Combo charts. Line Styles sets line thickness and dash style. Choose Default Line Style for uniform lines, or expand Custom Line Styles to configure each series. Select the edit icon next to a series to customize it. Markers adds dots or symbols at each data point. Set Type (Circle, Square, Triangle, Diamond), Size in pixels, and toggle Show all markers to display markers at every point or only at key intervals.

Confidence bands

For Line charts. A confidence band is a shaded range drawn around a series to show uncertainty (for example, a 95% interval). Each band is configured with:

Field	Effect
Confidence band of	The existing series the band attaches to.
Name	A label for the band, shown in the legend. Must be unique on the widget.
Lower and Upper Boundary	The fields (with an aggregate function) that set the bottom and top of the band. Each must return a number.
Show on legend	Whether the band appears in the legend.
Color	The band’s fill color.

You can add several bands, including more than one on the same series. Two bands cannot use the same series and the same boundary fields.

Mark areas

Shaded background zones that highlight a range — a peak window, an acceptable operating band, or a fault threshold. Each area is set with the axis to draw on (X or Y), a lower and upper boundary, a color, and an optional name (with its own position and font). Mark areas can use dynamic column values or static boundaries. Additional options control fill color, opacity, and label placement. Add as many as needed. Available on Bar, Line, Combo, Scatter, and Boxplot charts.

Reference lines

Static horizontal or vertical lines for marking a setpoint or threshold. Reference lines can use dynamic column values or fixed positions. Style options include line color, thickness, and label formatting. Add one or more per chart. Available on Bar, Line, Combo, Scatter, and Boxplot charts.

Data bars

For tables. In-cell horizontal bars that show each numeric value’s magnitude. On a Pivot table, bars appear only on the lowest level of the hierarchy, not on sub-totals or totals.

Option	Choices or values	Effect
Apply to	One column or several columns	Which numeric columns get bars.
Display	Bar only or Bar and value	Whether the number stays visible alongside the bar.
Scale	Static or Dynamic	Fixed min and max, or bounds taken from the column’s own range.
Positive or Negative color	Two colors	Separate colors for positive and negative bars.

Zoom and scroll

For long time-series or large datasets. Zoom lets the viewer focus on part of the range. Enable it per axis. Viewers can click and drag to zoom into a region. Scroll-wheel zoom is supported on some chart types. Available on line, combo, and time-series chart types. Scroll keeps the chart compact by showing a set number of items at a time with a scroll bar, per axis.

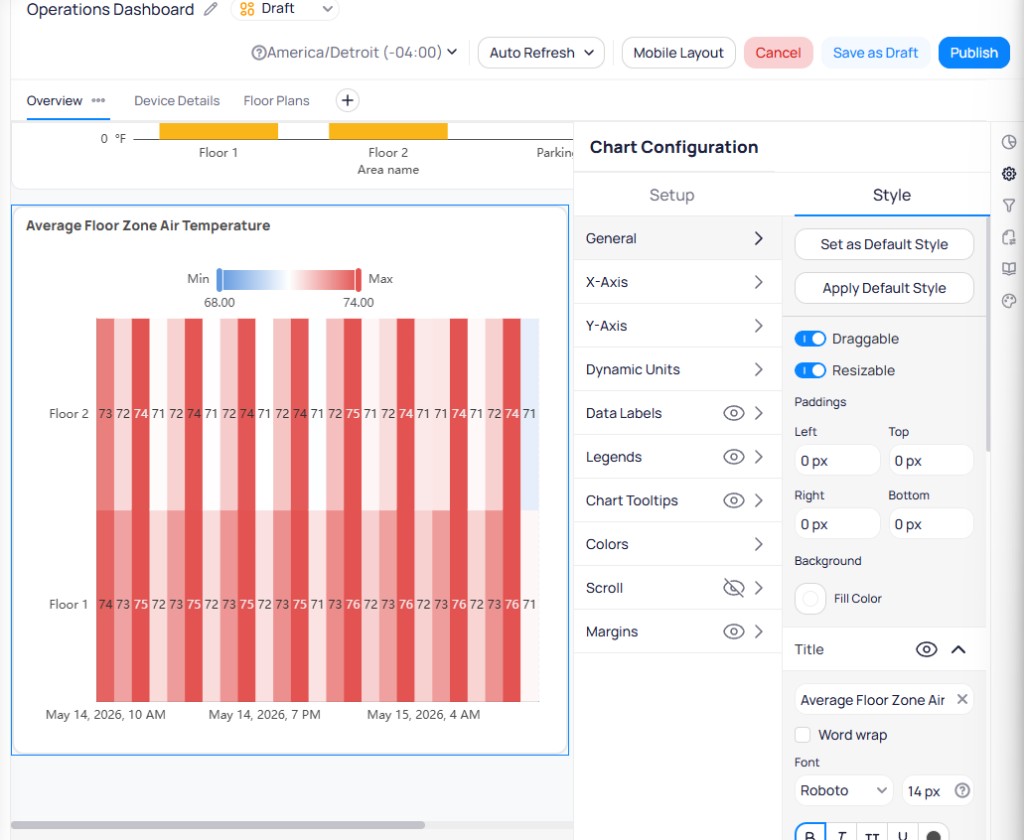

Chart Configuration Style tab with Scroll section expanded showing X-Axis Items set to 5 and Y-Axis Items set to 5 — Scroll style section showing X-Axis and Y-Axis Items fields

Field

Sets how many data points are visible on the X-Axis at once. Remaining points are accessible by scrolling. For example, 5 shows five items at a time.

Field

Sets how many data points are visible on the Y-Axis at once. Works the same as X-Axis Items for vertically oriented data.

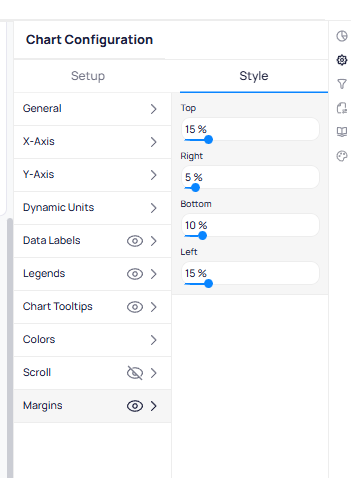

Margins

External spacing around the plot area as a percentage of the widget size. Configure Top, Right, Bottom, and Left independently with the slider or by entering a percentage. Use margins to center the chart or stop axis labels from being clipped.

Style options by chart type

Which Style sections appear depends on the chart type. General, Colors, and Margins are nearly universal. The table below lists the sections specific to each type.

Chart type	Style sections it adds
Bar (all variants)	X and Y Axis, Data Labels, Legends, Bar Configuration, Mark Areas, Reference Lines, Zoom and Scroll
Line (all variants)	X and Y Axis, Secondary Y-Axis, Data Labels, Legends, Line Styles and Markers, Confidence Bands, Mark Areas, Reference Lines, Zoom and Scroll
Combo	X and Y Axis, Secondary Y-Axis, Bar Configuration, Line Styles and Markers (bar and line styled separately), Data Labels, Legends, Mark Areas, Reference Lines, Zoom and Scroll
Scatter	X and Y Axis, Markers, Regression Line, Legends, Mark Areas, Zoom
Advanced Scatter	X and Y Axis, Data Labels, Markers, Legends
Pie	Data Labels (with label line), Legends, Donut
Sunburst	Borders, Minimum Angle, Radius, Legends
Treemap	Borders, Drill-down, Data Labels, Legends
Polar Bar (both)	Dimension Axis, Metric Axis, Polar Properties (center size, Radial or Polar), Data Labels, Legends, Zoom
Boxplot (both)	X and Y Axis, Mark Areas, Reference Lines, Zoom and Scroll
Tree	Orientation and Layout, X and Y Axis, Data Labels, Legends, Zoom and Scroll
Sankey	Levels (per-band node and link colors), Data Labels, Legends, Zoom and Scroll
Gauge	Value, Target, Scale (min-max), Data Labels
Card and Number	Value, Description (Number with Target adds a Target value; Number with Period adds a Change indicator)
Multi-row Card	Card layout, Labels
Table (Raw, Aggregated, or Pivot)	Table Appearance, Data Bars
Building Date Time	Date, Time, Timezone
Weather	Weather details (current, daily forecast, hourly)
Text	Rich-text editing on the widget itself
Slicer	Display options — see Slicer widget

Chart-type-specific sections

Options that appear only on the chart types named.

Section	Chart type	Effect
Donut	Pie	Turns the pie into a donut; sets the inner and outer radius and the ring border.
Borders	Pie, Sunburst, Treemap	Border color, width, and corner radius around each slice or rectangle.
Minimum Angle	Sunburst	The smallest slice angle, so thin slices stay visible.
Radius	Sunburst	The size of the rings.
Drill-down	Treemap	Controls the click-to-expand behavior.
Polar Properties	Polar Bar	The center hole size and whether bars are drawn `Radial` or `Polar`.
Dimension and Metric Axis	Polar Bar	The polar equivalents of the X and Y axes (title, labels, format, range).
Regression Line	Scatter	Adds a trend line (linear), with its own line style, weight, color, name, and an option to show it in the legend.
Value	Card, Number, Gauge, Advanced Scatter	The displayed number: font, color, number format, and a prefix or suffix such as kWh.
Target	Gauge, Number with Target	The target value’s label and formatting; Gauge also sets the scale’s minimum, maximum, and target.
Change indicator	Number with Period	The period-over-period change, shown as a percentage with an up/down arrow and separate colors for positive and negative.
Description	Card, Number	A caption beneath the value.
Card layout and Labels	Multi-row Card	Card orientation, spacing, borders, and label formatting.
Table Appearance	Tables	Header, row, sub-total, and total formatting (font, color, height, word wrap); pagination; borders; and per-column formatting (number or date format, background and font colors, hyperlinks).
Levels	Sankey	Per-band node and link colors, and band labels.
Orientation and Layout	Tree	The branch direction and whether the tree is drawn as an orthogonal or radial layout.
Date, Time, and Timezone	Building Date Time	Date format and length, 12- or 24-hour time and precision, the timezone label, and alignment.
Weather details	Weather	Whether to show current conditions, building name/address, a daily forecast (and how many days), and the hourly chart, plus its colors.

Combo chart sections

Combo charts combine bar and line series and expose the most style sections of any chart type:

Secondary Y-Axis — configures the right-side axis used by line series. Same options as Y-Axis (title, values, grid lines).
Bar Configuration — controls bar thickness and spacing between bars.
Bar Data Labels — value labels on bar elements. Same options as Data Labels, scoped to bars only.
Line Data Labels — value labels on line elements. Same options as Data Labels, scoped to lines only.
Bar Colors — colors for bar series. Uses the Type dropdown (Color Scheme, Color Palette, Color Series, Range, Gradient).
Line Styles — line appearance. Choose Default Line Style or expand Custom Line Styles per series.
Line Colors — colors for line series using the Type dropdown. When set to Color Series, each line series shows its assigned color and label.
Markers — data point markers on line series. Set Type, Size, and Show all markers.

The weather widget has a General section and a Weather section:

Compact View — toggles a condensed layout.
Current Weather — toggle Show Building Name, Show Building Address, and Current Weather Details.
Daily Forecast — show or hide the multi-day forecast. Set Forecasted Days (2 through 7) with the slider.
Hourly Chart — show or hide the hourly temperature chart. Set Chart Fill Color and Chart Line Color.
Colors — set Labels Color and Values Color for weather text.

Table widgets (Table Raw, Table Aggregated, Table Pivot) use a different Style tab structure:

General — includes Dynamic Column Width, Disable Tooltips, and Show Row Info in Tooltip in addition to standard general settings.
Batch Apply Actions — apply style changes across all columns at once.
Order Columns — reorder columns by dragging.
Table Properties — overall table behavior and layout.
Data Bars — inline bar visualizations within table cells.
Headers — header row styling. Set Height, Word wrap, Font, Alignment, and Background.
Rows — data row styling. Set Height, Word wrap, Font, and Alignment independently from headers.
Total — totals row at the bottom. Set Label, Height, Word wrap, Font, and Background.
Pagination — page navigation for large datasets. Set Custom colors for label, page size, and total label colors.
Borders — set Borders type, Width, and border Color.

Column-level styling

Each column appears in the left panel. Select a column to open its style panel:

Field

Sets column Width in pixels. A value of 0 uses auto-width.

Field

Sets Borders type, Width, and border Color for that column.

Field

Overrides header style for this column. Set Alignment, Font, and Background color.

Field

Overrides row style for this column. Set Alignment and Font independently from the header.

Field

Adds text before each cell value.

Field

Selects a unit from the Choose Unit dropdown to apply unit conversion to the prefix.

Field

Adds text after each cell value (for example, degrees C).

Field

Sets the display text for cells with no data (for example, a dash).

Field

Configures numeric display. Set Units (Adaptive, None, or a specific unit), Decimals, and toggle Thousands.

Field

Sets Type to Static for a fixed color or Dynamic for conditional coloring. Select the Color when using Static.

Field

Sets Type to Static or Dynamic. Use Dynamic for conditional background colors based on value ranges.

Field

Configures this column in the totals row. Set Aggregate Function (Sum, Average, Min, Max, Count). Configure Font Color and Background Color with Static or Dynamic types.

Field

Applies a URL from Apply URL to make cell values clickable links. URLs must be configured in the data source.

Field

Applies an action from Apply Actions to enable interactive behaviors on cell click.

Bulk and reusable styling

Default styles, bulk styling, and copy/paste apply appearance across many widgets without redoing each option. These workflows live in Widget customization.

Default styles — save a page-level look and apply it on demand. Changing the default does not alter existing widgets until you re-apply it. See Default styles vs global styles.
Copy and Paste Style — replicate the appearance of one widget onto others, including Paste Styles on Selected.
Bulk selection — select widgets of a single type to edit general and chart-specific options. A mixed selection limits you to general options. See Keyboard shortcuts and bulk selection.

Next steps

Widget customization

Apply default styles, bulk styling, and copy/paste workflows.

Color tools

Configure series colors, gradients, ranges, and palettes.

Widget customization

Style widgets, apply defaults, manage palettes, and add graphics.

Choosing visualizations

Match chart types to the question you need to answer.

Chart types

Look up Setup requirements for every widget type.

Color tools

Configure series colors, gradients, and palettes.

Get Started

Dashboards

Data sources

Collections & templates

Administration

Concepts

Reference

General

X-Axis and Y-Axis

Dynamic units

Bar configuration

Data labels

Legends

Chart tooltips

Colors

Line styles and markers

Confidence bands

Mark areas

Reference lines

Data bars

Zoom and scroll

Margins

Style options by chart type

Chart-type-specific sections

Combo chart sections

Weather widget sections

Table widget sections

Column-level styling

Bulk and reusable styling

See also

Next steps

Widget customization

Color tools

Widget customization

Choosing visualizations

Chart types

Color tools

​General

​X-Axis and Y-Axis

​Dynamic units

​Bar configuration

​Data labels

​Legends

​Chart tooltips

​Colors

​Line styles and markers

​Confidence bands

​Mark areas

​Reference lines

​Data bars

​Zoom and scroll

​Margins

​Style options by chart type

​Chart-type-specific sections

​Combo chart sections

​Weather widget sections

​Table widget sections

​Column-level styling

​Bulk and reusable styling

​See also

​Next steps

Widget customization

Color tools

​Related reading

Widget customization

Choosing visualizations

Chart types

Color tools

General

X-Axis and Y-Axis

Dynamic units

Bar configuration

Data labels

Legends

Chart tooltips

Colors

Line styles and markers

Confidence bands

Mark areas

Reference lines

Data bars

Zoom and scroll

Margins

Style options by chart type

Chart-type-specific sections

Combo chart sections

Weather widget sections

Table widget sections

Column-level styling

Bulk and reusable styling

See also

Next steps

Related reading
