Create, test, import, export, and manage FDD routines using the logic builder and debugger to define custom fault detection rules for your equipment.
FDD routines define the logical rules that monitor your building equipment for specific fault conditions. Cloud BMS provides a pre-configured library of routines and a logic builder for creating custom rules.

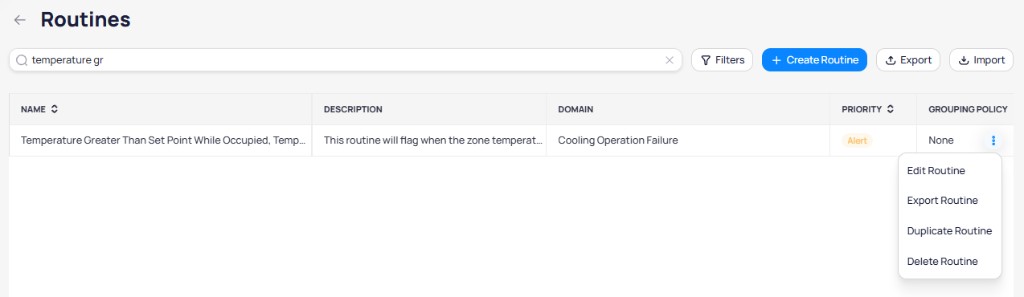

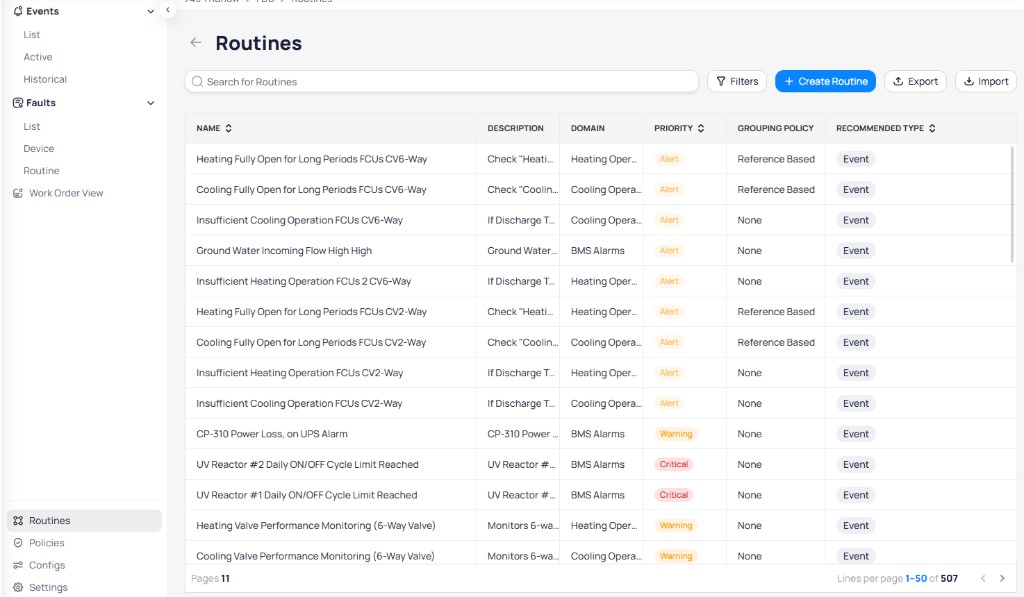

Navigate to FDD from the left sidebar, then select Routines from the secondary sidebar.
Select + Create Routine from the toolbar. The Workflow Details tab opens.

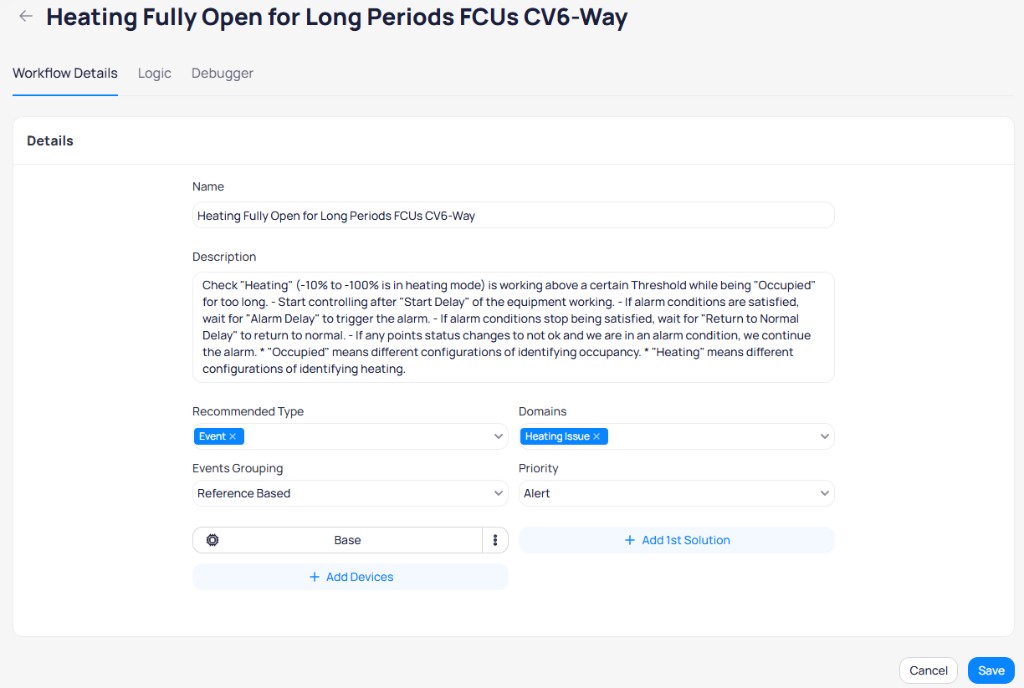

The Workflow Details tab contains the routine name, description, recommended type, domains, grouping, priority, and device configuration
Complete the following fields:
Field
Description
Name
A descriptive name for the fault condition
Description
Explanation of what the routine detects
Domains
Equipment domains this routine applies to
Events Grouping
How events from this routine are grouped
Priority
Default priority level for generated events
Canonical Types
Equipment types for base and reference devices
Entities
Entity definitions for base and reference devices
When you select entities in Add Devices, the first click includes the entity as a required field. A second click marks the entity in red. A red (excluded) entity means the routine looks for devices that have the other required entities and do not contain that excluded entity. Use exclusion when you need to filter out devices that carry an unwanted field.

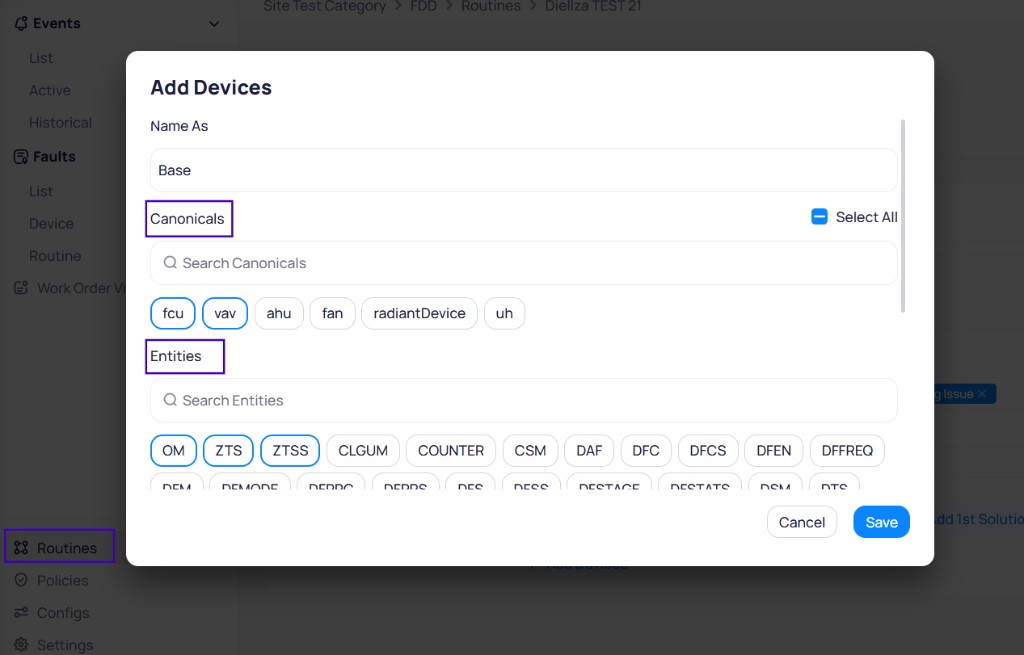

The Add Devices dialog lets you select Canonicals and Entities for base and reference devices
2
Build the logic
Open the Logic tab. The left panel contains available logic blocks organized by category: Read (String Point, Number Point, Boolean Point, Enum Point, arrays), Parameters (Number, Boolean, String), Organize (Folder), and Constants (Result).Drag blocks from the left panel onto the canvas to build the detection logic. Connect blocks in sequence to create the logical path from data input to alarm output. Each routine must start with at least one Read block and end with an Alarm Trigger block.
The Logic tab provides a visual canvas for connecting blocks into a detection sequence
See Routine logic blocks for a complete reference of available block types and their functions.
3
Test with the debugger
Open the Debugger tab. The left sidebar displays PARAMS (adjustable parameter values) and INPUTS (simulated device data). The main screen shows the Simulator output.

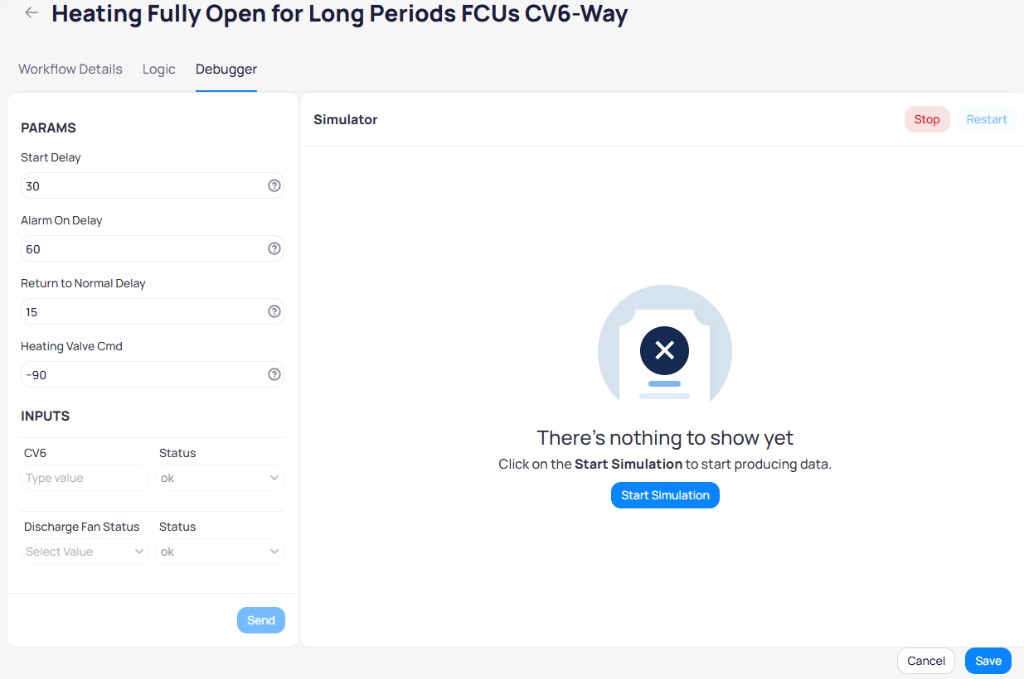

The Debugger tab shows parameters and inputs on the left, with the Start Simulation button in the center
Review the PARAMS section and adjust parameter values as needed.
Select Start Simulation to begin the test.
Update INPUT values to simulate different conditions, then select Send.

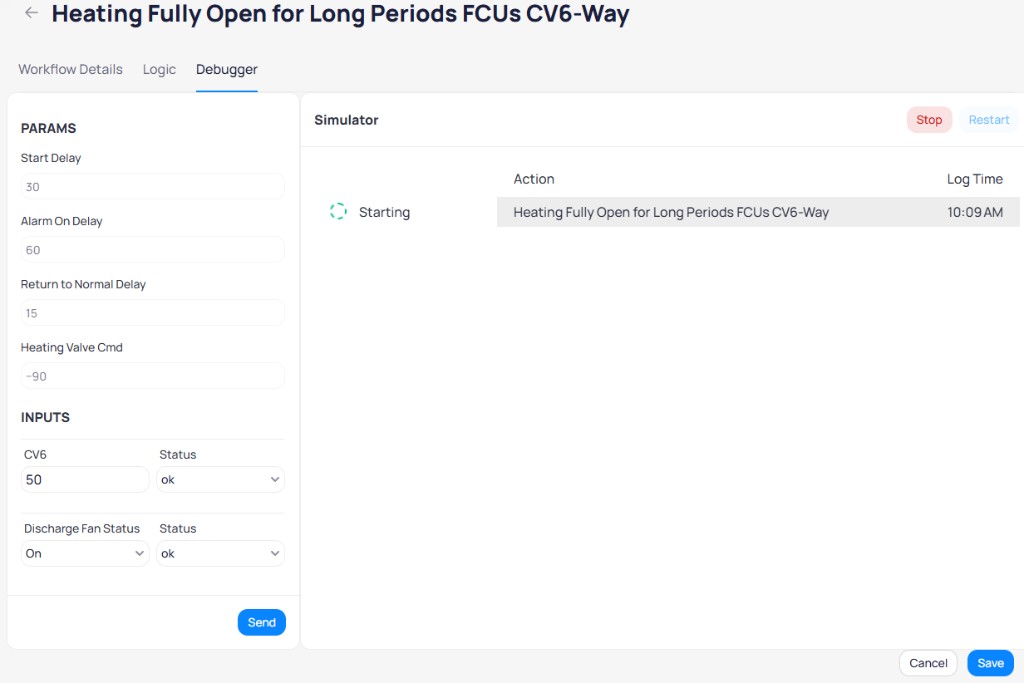

After sending input values, the Simulator logs actions with timestamps
Verify that the routine produces the expected response for each scenario.
Delay times run in real time during simulation. To speed up testing, temporarily change time units to seconds on timer logic blocks. Return to the correct units before deploying.
Test boundary values thoroughly. Verify conditions that should trigger events and conditions that should not. This catches threshold errors before deployment.
4
Save the routine
Select Save. The routine appears in the Routines list and becomes available for configuration in the Configs page.
Transfer routines between environments as .json files. Export downloads proven rules. Import uploads them without rebuilding logic.
Export
Import
The export feature lets you download routines as files for sharing or transferring to other environments.
1
Select routines to export
Select the checkboxes next to the routines you want to export. The Export button at the bottom right shows the count of selected routines.

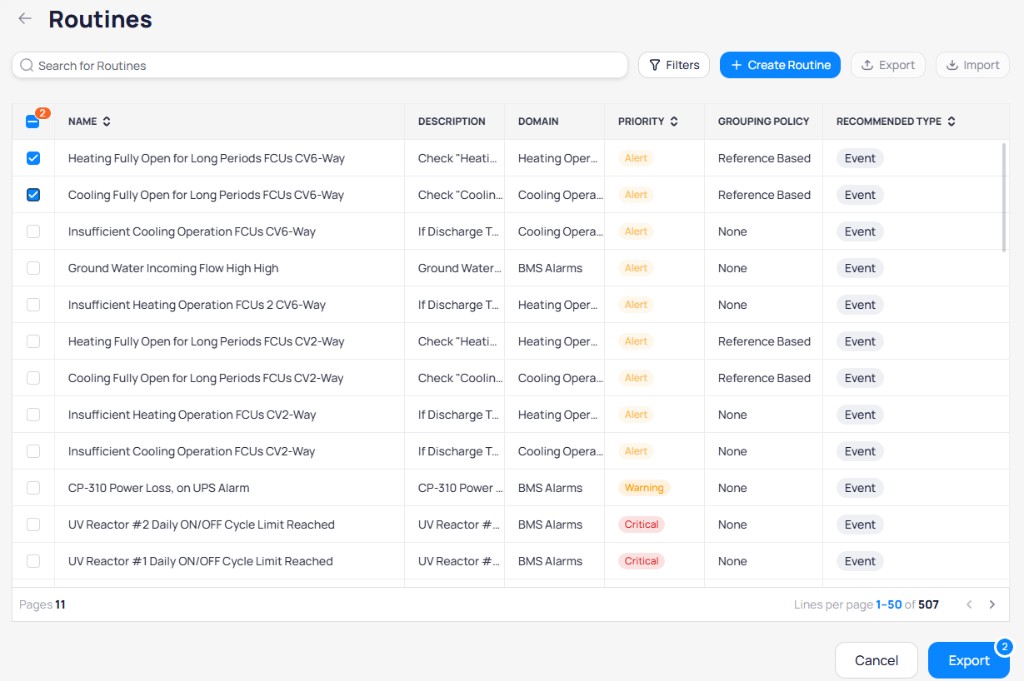

Select routines from the list using checkboxes, then select Export
2
Name the export file

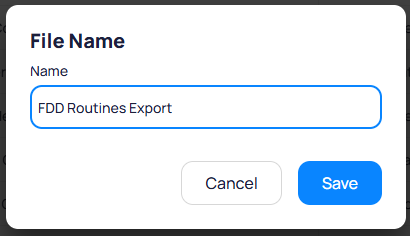

Enter a name for the export file in the File Name dialog and select Save.
Assign a name to the export file
3
Download the file
The file downloads to your computer as a .json file.
The exported routines download as a JSON file
The import feature lets you upload routines from exported files to add proven rules without rebuilding them.
1
Open the import dialog

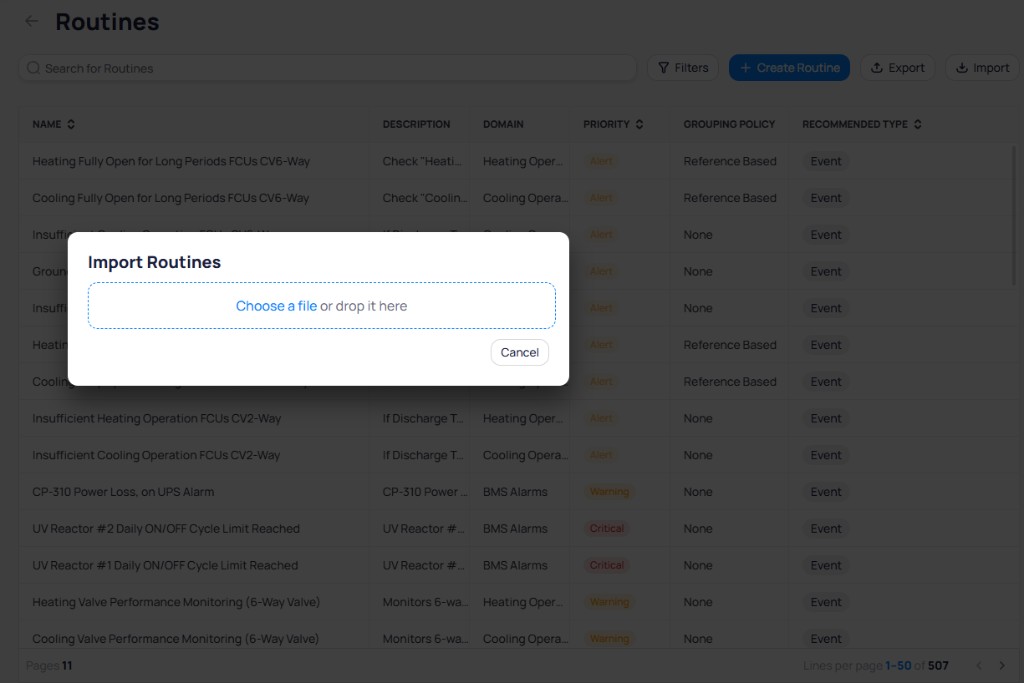

Select Import at the top right of the Routines page. The Import Routines dialog opens with a file upload area.
The Import Routines dialog accepts a file upload or drag and drop
2
Upload and review routines
Select a file from your computer or drag and drop it into the upload area. The dialog displays the imported routines with editable fields for name, description, priority, and grouping policy.In the Replace column, choose how to handle conflicts with existing routines:
Replace overwrites the existing routine with the imported version
Keep both retains the existing routine and adds the imported version
Keep old ignores the imported routine and retains the existing version

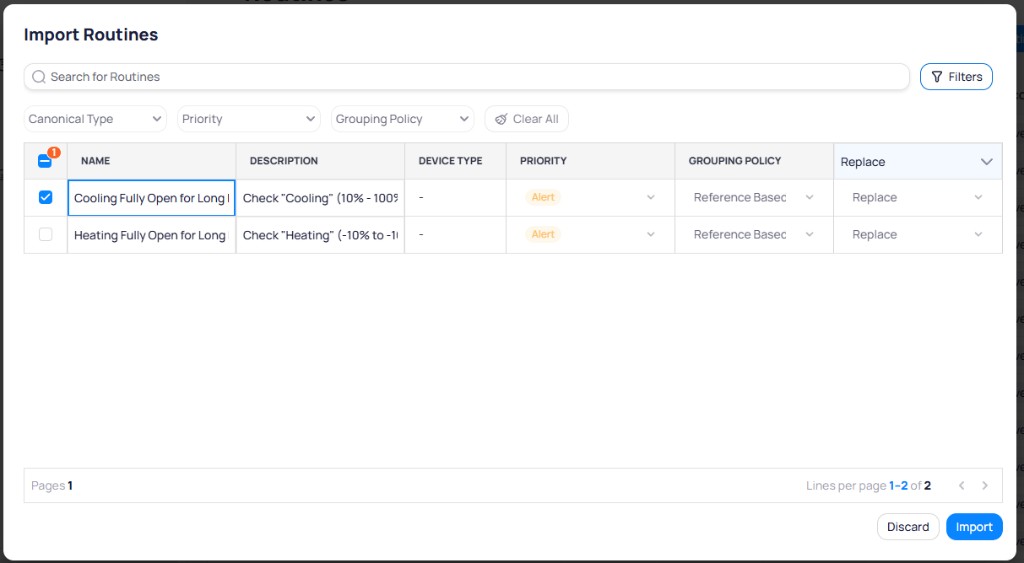

Review imported routines, edit details, and choose how to handle conflicts
3
Complete the import
Select Import to finalize. The imported routines appear in your routines list. Select Discard to cancel without importing.
Routines are the intellectual property of the party that created them. Neither KODE Labs nor partners hold exclusive rights over general fault detection concepts.Export and import permissions are managed at the role level. Only super admins can access these features. Backend logs track who created, exported, and imported each routine.
This feature works for both FDD routines and FTT workflows. The same export and import process applies to both module types.
