Faults

Faults capture long-term or recurring issues across your building equipment. Use the Faults page to monitor patterns, prioritize maintenance, and track resolution over time.

​

Access from device details

Open any device and select the Trends tab. Click Faults in the summary bar to review recent faults for that equipment in the FDD Faults sidebar. See View faults from trends. Faults are generated daily when Fault Config is enabled in the Status Setup section of a routine’s configuration. They analyze non-critical comfort, energy, and mechanical issues. To create faults, you first define a monitoring routine, then configure it with Fault Config enabled.

​

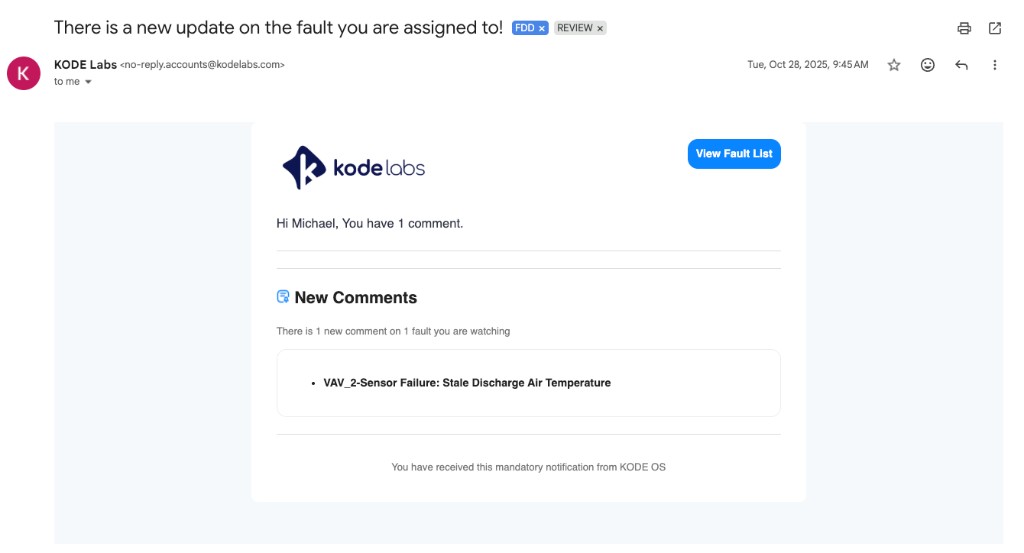

Watcher notifications

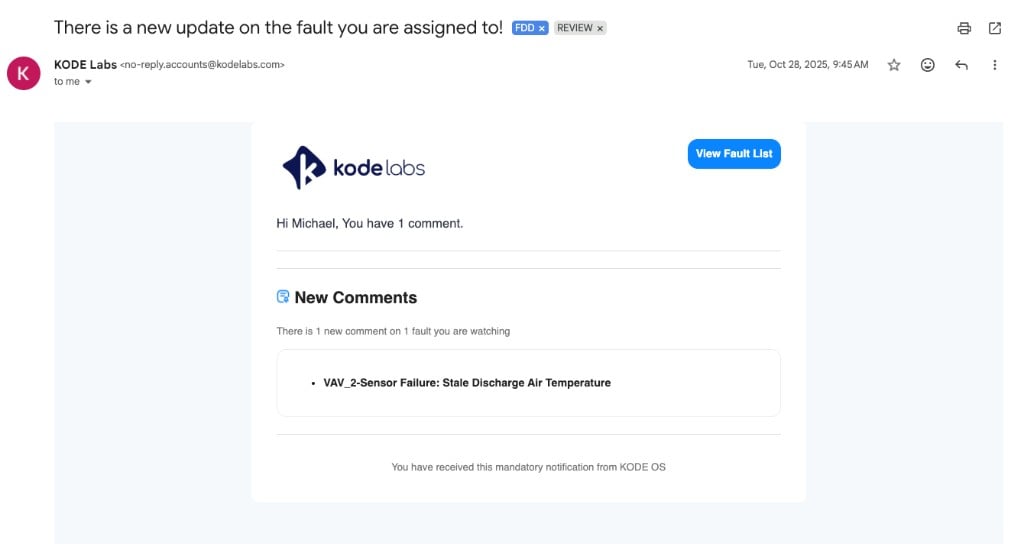

Faults send email notifications to assigned watchers when any of the following occur:

• Status update
• New comment
• New watcher (notifies only the newly added watcher)

Notifications use a five-minute rolling delay. Each watcher-relevant change resets the window. After five minutes with no further changes, FDD sends one email that summarizes the updates in that window. For example, if changes occur at minute 1, minute 3, and minute 7, relevant watchers receive a summary email at the 12-minute mark.

​

Faults landing page

The Faults page provides three views to organize fault data:

​

List view

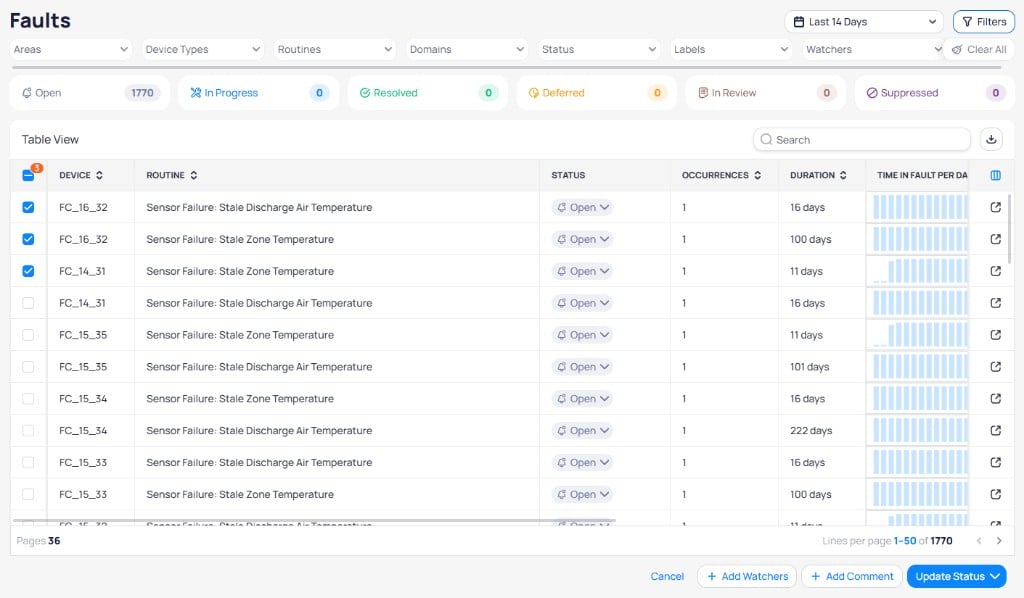

The list view displays one row per fault. Status tabs at the top show counts for Open, In Progress, Resolved, Deferred, In Review, and Suppressed faults. Use the date picker at the top right to select a time range (up to 30 days) and select Filters to open the filter bar. Hover over the Time in Fault per Day column to see a tooltip with the event count and total hours in fault for a specific day. The list view displays the following columns:

​

Filter and search faults

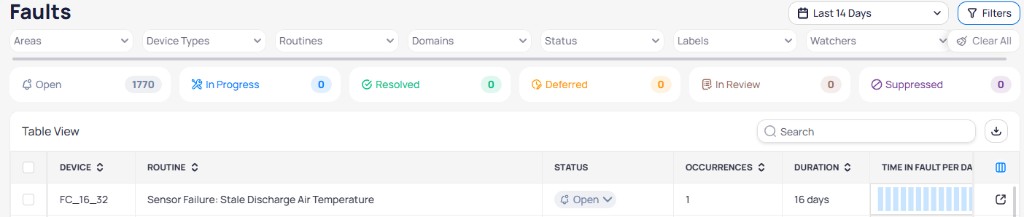

Select Filters to open the filter bar with dropdown slicers for Areas, Device Types, Routines, Domains, Status, Labels, and Watchers. Select Clear All to reset all filters. Search faults by device name or routine name using the search bar.

​

Bulk actions

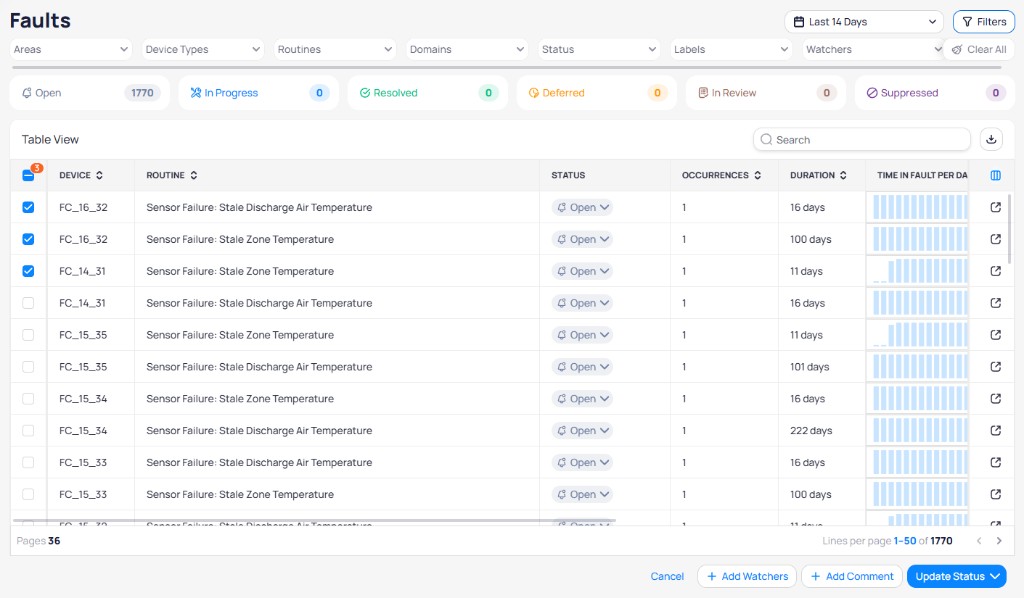

Select one or more faults using the checkboxes on the left side of the table. A bulk action toolbar appears at the bottom with the following options:

• Cancel — deselect all faults
• + Add Watchers — assign watchers to the selected faults
• + Add Comment — add a comment to all selected faults
• Update Status — change the status of all selected faults at once

​

Export

Select the download icon to export the filtered list as a CSV file. Fault metrics such as total duration and occurrences are computed based on the selected date range.

​

Fault report

Select any fault row to open the fault report. The report header displays the fault name, device name, date picker, status dropdown, and a Watchers control to add or view users monitoring the fault. The report contains two tabs: Details and Activity Log.

​

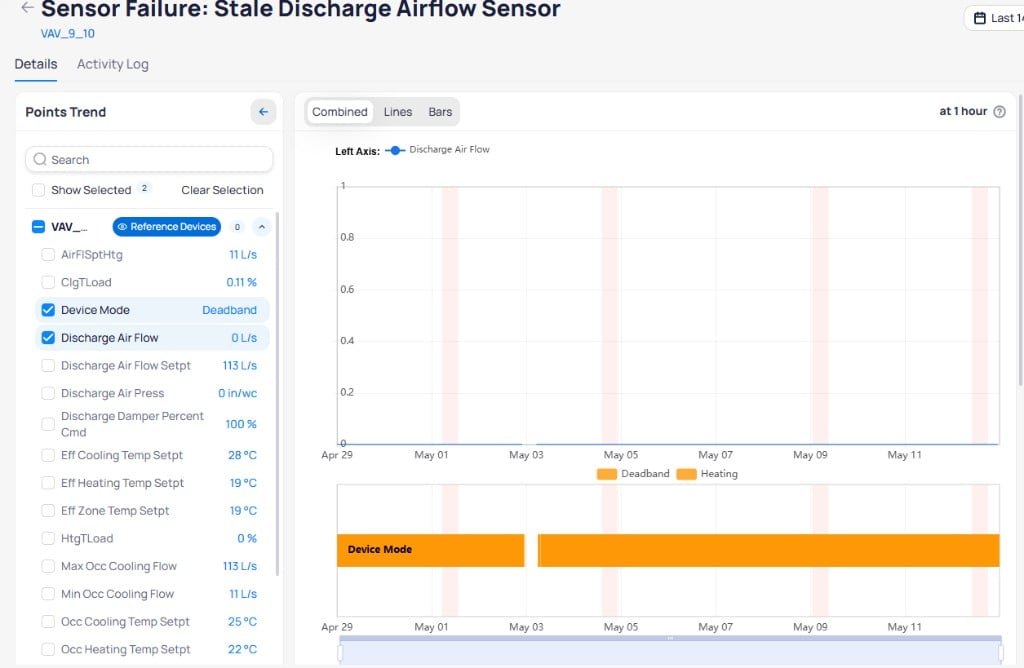

Points trend view

The Points Trend panel on the left lists all available points for the device with their live values. Search for specific points or check their checkbox to toggle visibility on the trend chart. Select Show Selected to display only checked points. Select Clear Selection to reset. Use the Reference Devices tab to view and overlay points from related devices. Red shaded regions on the trend chart highlight the periods when fault events were active. Switch between display modes:

​

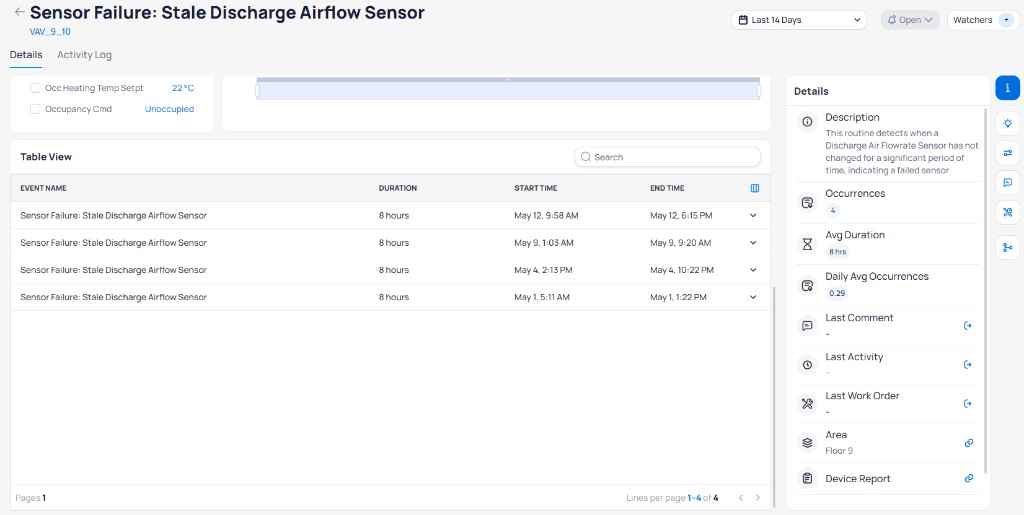

Table view

Below the trend chart, a table lists each event associated with the fault. Search events using the search bar. Each row is expandable for additional detail.

​

Fault details sidebar

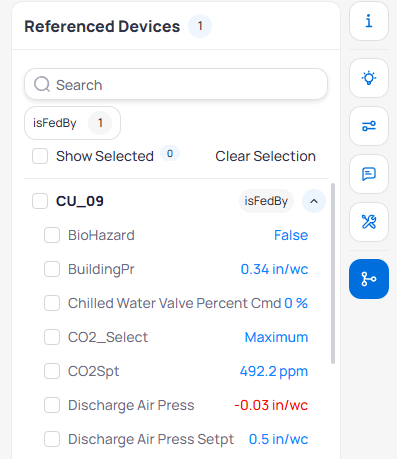

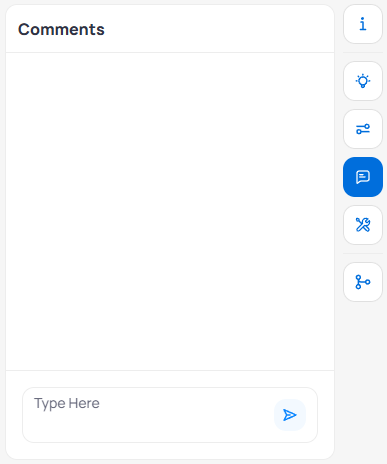

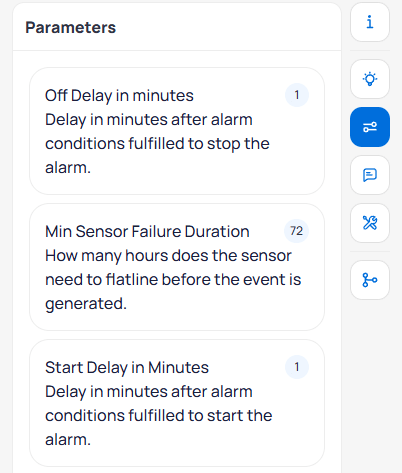

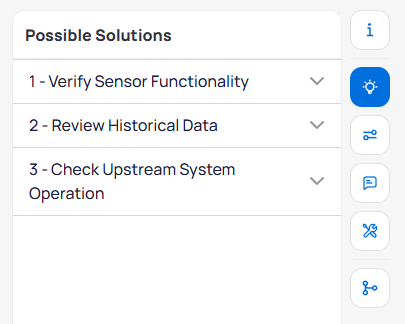

The sidebar on the right side of the fault report contains multiple tabs accessible through icon buttons. Details — displays core fault information: Possible Solutions — lists recommended actions to resolve the fault. Each solution is an expandable card with detailed troubleshooting steps. Parameters — shows the tuning parameter values configured for the routine that generated the fault. Each parameter card displays the parameter name, its current value, and a description. Comments — a shared space for team collaboration. Type a message and select the send button to post a comment. Work Orders — displays linked work orders with an option to create new ones. Referenced Devices — lists related devices grouped by ontology relationship type. Select a device to expand its point list and view live values. Check a point’s checkbox to overlay it on the trend chart for comparison.

​

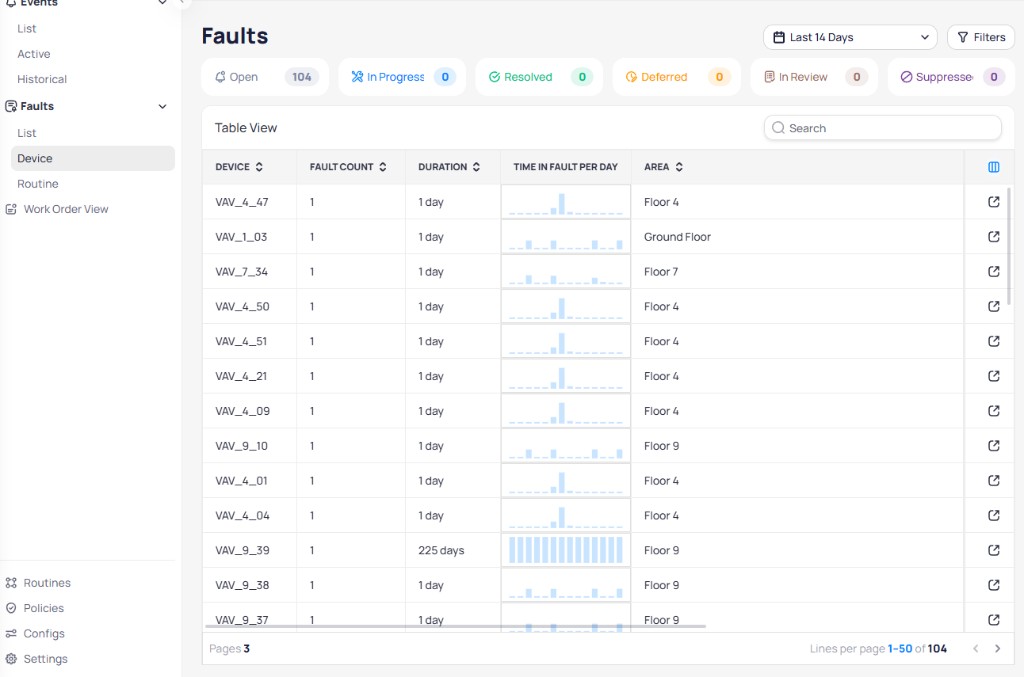

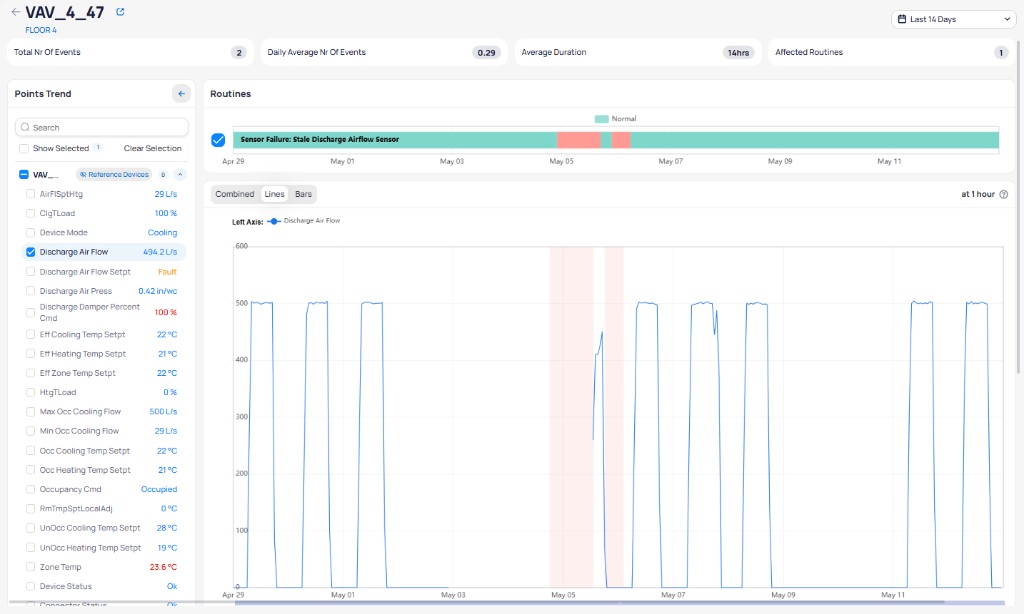

Device view

The device view groups faults by device. Each row represents a single device with aggregated fault data. The same status tabs, date picker, and filter controls from the list view are available. Select any device row to open the device fault report. The report header displays the device name, area, and a date picker. Summary cards show Total Nr Of Events, Daily Average Nr Of Events, Average Duration, and Affected Routines. The Routines section shows a timeline for each affected routine. Green indicates normal operation and red/orange indicates fault periods. Below the routines timeline, the Points Trend panel and trend chart function the same as the fault report. A Table View at the bottom lists the individual faults for the device.

​

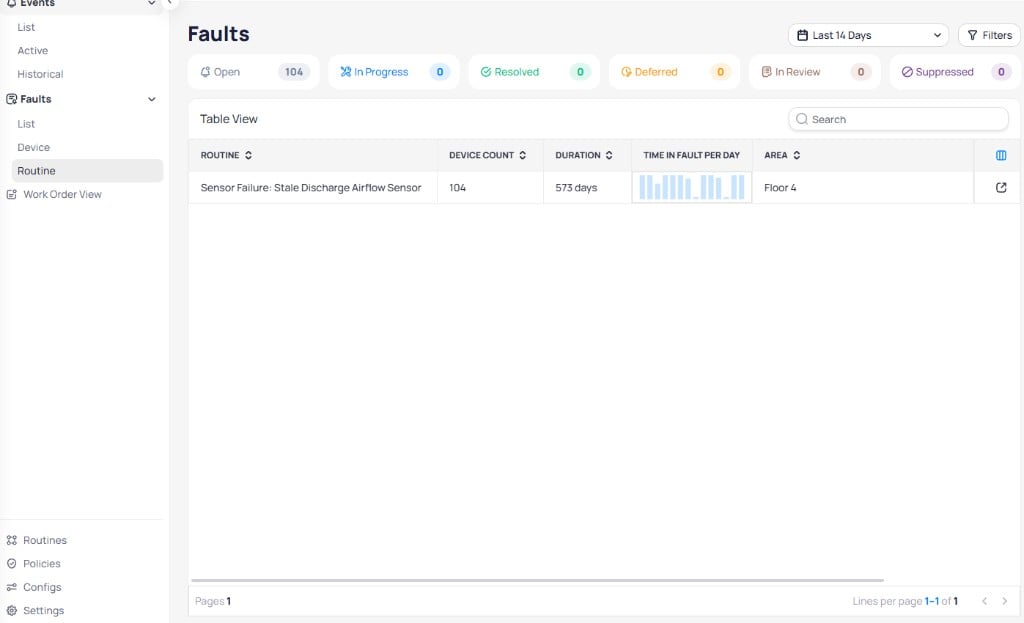

Routine view

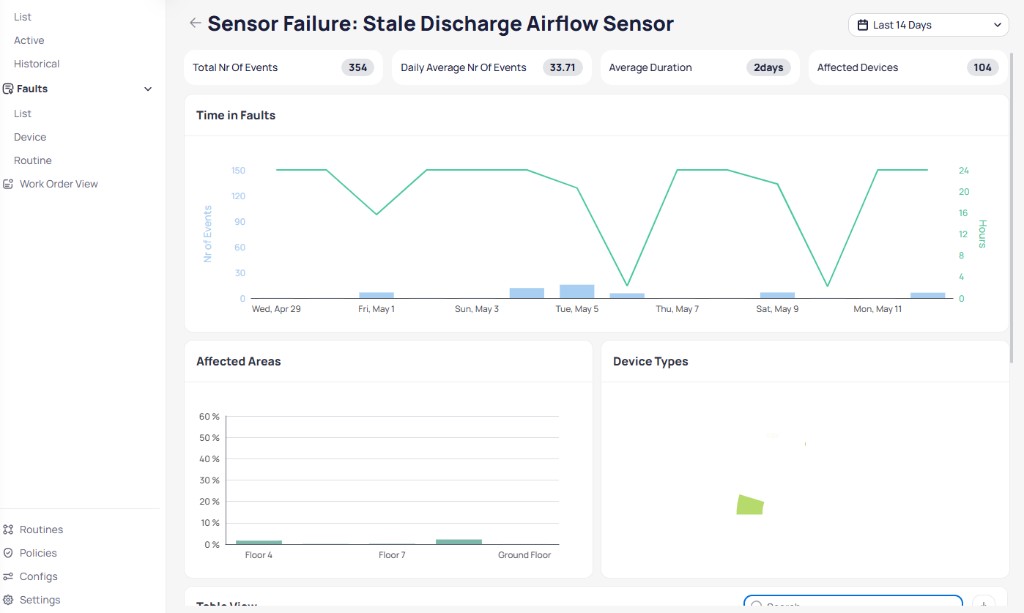

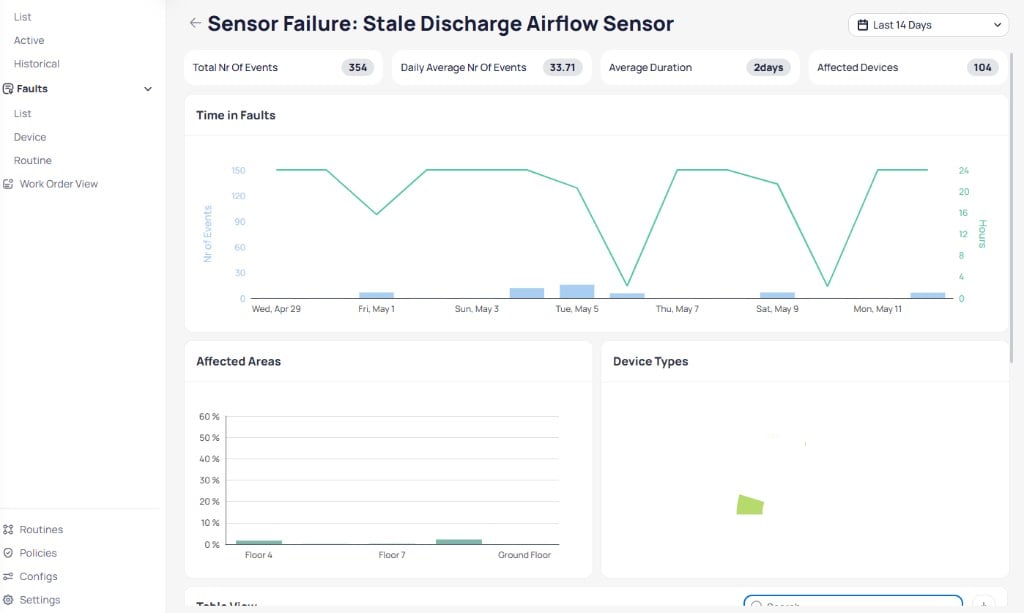

The routine view groups faults by monitoring routine. Each row represents a single routine with aggregated fault data. The same status tabs, date picker, and filter controls from the list view are available. Select any routine row to open the routine fault report. The report header displays the routine name and a date picker. Summary cards show Total Nr Of Events, Daily Average Nr Of Events, Average Duration, and Affected Devices. The Time in Faults chart displays the number of events as bars and total fault hours as a line over the selected time range. Below, Affected Areas and Device Types charts show the distribution of faults by floor and equipment type. A Table View at the bottom lists the individual faults for the routine, with columns for Device, Routine, Status, Occurrences, Duration, Time in Fault per Day, and Watchers.

​
